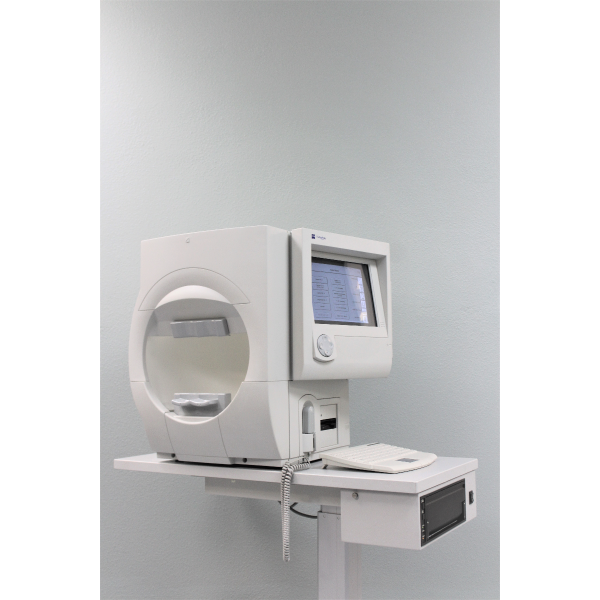

Humphrey Zeiss 745i Visual Field Analyzer HFA-II

The Zeiss Humphrey Field Analyzer is the industry leading technology
for glaucoma diagnosis and management, substantiated by
over 60,000 units installed worldwide and over 25 years of research,
design, and clinical practice. The HFA 745i visual field analyzer boasts all
the features of the HFA 740i plus SITA-SWAP software for early detection.

Key Features:
Silent, Computerized Projection System
Static Threshold
Screening Strategies out to 90 Degrees
Aspherical Bowl
Ergonomic Design
Video Eye Monitor
Wheelchair-Accessible Table

Specs:
Test specifications
Maximum temporal range (degrees): 89
Stimulus duration: 200 ms
Visual field testing distance: 30 cm
Background illumination: 31.5 ASB

Threshold test library
24-2, 30-2, 10-2, Macula
60-4, Nasal step

Threshold test strategies
SITA Standard, SITA Fast, Full Threshold, FastPac
SITA-SWAP

Screening test library
C40, C64, C76, C80, C-Armaly
Peripheral test patterns

Screening test modes
Age corrected
Threshold related, Single intensity

Specialty test library
Social Security Disability, monocular, binocular
Superior 36, 64
Kinetic testing option
Custom testing

Fixation control
Heijl/Krakau blind spot monitor
Video eye monitor
Gaze tracking
Remote video eye monitor capability

Operator interface
Touch-screen CRT with keyboard

Stimulus
Frequency doubling
White-on-white
Red- or blue-on-white
Blue-on-yellow (SWAP)

General testing features
Stimulus sizes (Goldman I-V)
Foveal threshold testing

User-defined test storage

Software features
Visual Field Index (VFI)
EasyConnect RCT
HFA-NET Pro
Glaucoma Hemifield Test (GHT)
DICOM Gateway Option
Guided Progression Analysis (GPA)
STATPAC 2–single field analysis
Serial field overview
Networking
