Humphrey Zeiss

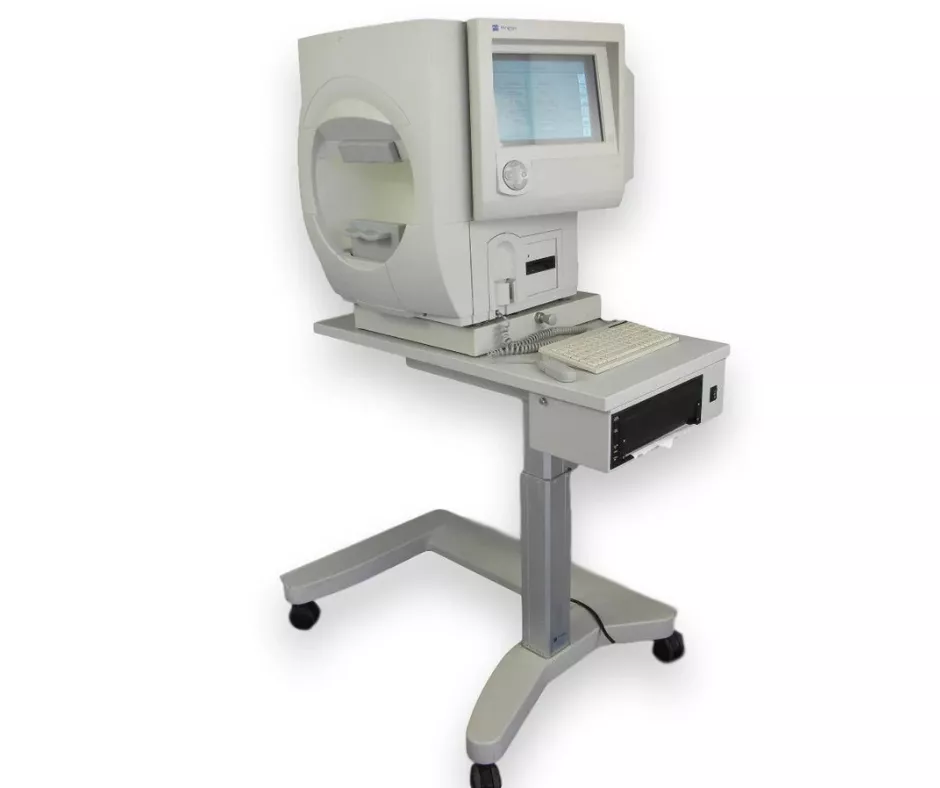

This Humphrey Field Analyzer Model 750i comes with
wheelchair accessible table and printer.
These unit is fully refurbished, worn parts are replaced,
a fresh database is set up,
software is upgraded and all units are fully calibrated.

Zeiss Humphrey 750i Specifications
Fixation control
Heijl/Krakau blind spot monitor
Video eye monitor
Gaze tracking
Remote video eye monitor capability Operator interface
Touch Screen CRT with Keyboard Stimulus
White-on-white
Red- or blue-on-white
Blue-on-yellow (SWAP) – Option General testing features
Stimulus sizes – Goldman I-V
Foveal threshold testing User-defined test storage
Software features
Glaucoma Hemifield test (GHT)
Glaucoma Progression Analysis (GPA)
STATPAC 2-single field analysis
Serial field overview
Networking (i model only)
Printer
Printrex thermal printer, table mounted
Data storage, retrieval and analysis
Hard drive – 40 GB
Magneto-optical disk drive – Option
Threshold Visual Fields in as Little as 2 Minutes
SITA sensitivity, reproducibility & accuracy has been shown in clinical testing when using the Zeiss Humphrey 750i

Diagnostic Precision
STATPAC 2 – Single & Multiple Field Analysis is a standard feature on
the Humphrey Visual Field HFA 750i. STATPAC, the language of perimetry,
compares results to proprietary age normative and glaucoma databases

Improved Reliability
The Zeiss 750i Perimeter also offers patented fixation monitoring including,
Krakau Blind Spot Monitoring, Video Eye Monitor, Gaze Tracking and
Remote Video Eye Monitor capability

Social Security Disability testing, Monocular, Binocular, and Custom Testing
are standard features on the Zeiss Humphrey 750i, while Kinetic Testing is
an option on the Zeiss 750i, providing the widest range of testing protocols
on any perimeter

Early Glaucoma Detection
The Zeiss 750i, 750, 745i, and 745 Perimeters all offer SITA-SWAP software,
which reduces blue-yellow threshold test time to just 4-6 minutes,
providing a clinically practical tool for early detection of glaucoma.
The SITA-SWAP software is standard on the Zeiss 750i Perimeter,
and the Zeiss 745i Perimeter, and available as an option on
the Zeiss 750 Perimeter, and the Zeiss 745 Perimeter

Gold Standard
Over 40,000 Zeiss Humphrey Perimeters worldwide including the Zeiss 750i,
745i, 750i, 720i, 750, 745, 740, 735, and the Zeiss 720
Perimeter Visual Field Analyzer

Operator Friendly & Patient Friendly
The Zeiss Humphrey 750i offers a touch screen, featuring on-screen menus
to simplify and expedite instrument operations. The Zeiss 750i Perimeter is
also wheelchair accessible and an ergonomic design allows
maximum comfort for all patient body types

Practice & Patient Friendly
The Zeiss 750i, 745i, 750i, and the 720i Perimeters include networking
software which automates Visual Field Analysis by connecting directly to
your office information system. Touch-screen and menu-driven
interface simplifies operation.
The Zeiss 750i Perimeter offers agronomic design for maximum comfort,
access and versatility

Complete Archiving System
The Humphrey Field Analyzer II “i” Series including the Zeiss 750i, 745i,
750i, and the 720i, all contain a hard drive, and Magneto-optical drive

Advanced Analysis
Zeiss Humphrey GPA Glaucoma Progression Analysis software
identifies clinically significant progression automatically

Pattern Deviation Plots identify localized field loss typical of glaucoma,
minimizing ocular media effects such as cataracts
