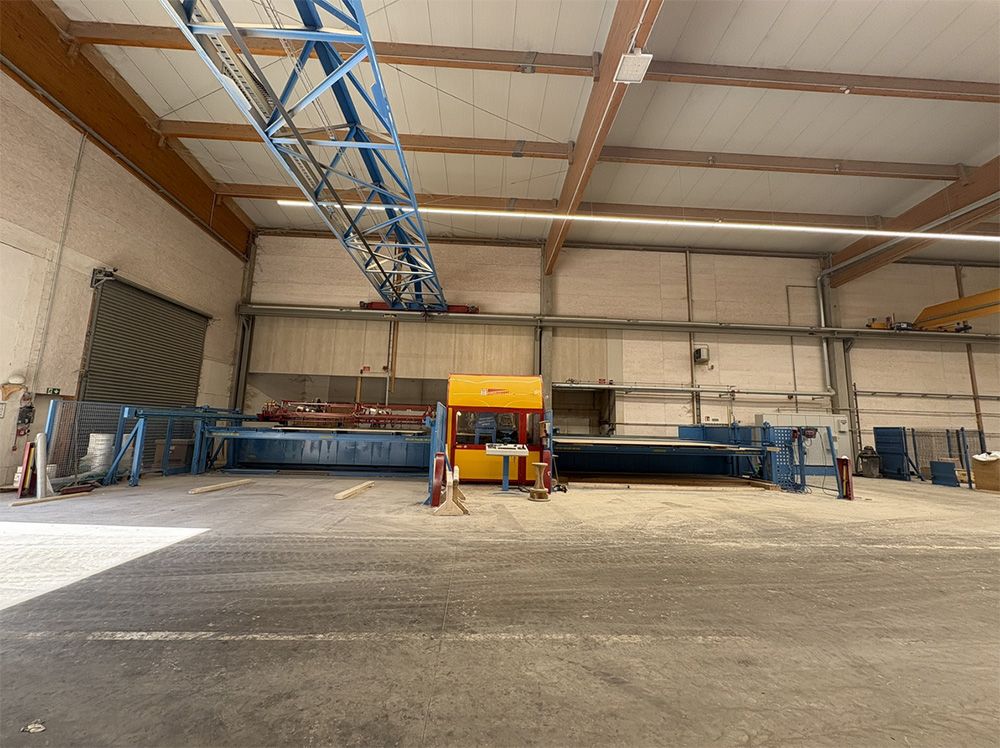

Hundegger SPM2

Equipment:
Machine type SPM2-2600x6000
• Panel format 2.6 m x 6 m
SPM2 base machine 2600x6000
1 Reinforced and extended gantry for
accommodating two 5-axis units
3 Automatic cutting optimization (nesting software)
1 Jointing fence 6000 mm
1 Switch for separate dust extraction
1 Dust extraction bar 2600 mm wide
1 Inkjet marking system - HP InkJet system 300 dpi
1 Marking unit

2 3-axis milling units 6.0 kW
max. 23,170 rpm, max. tool diameter 100 mm

1 3-axis Milling unit 8.5 kW
18,000 rpm

1 5-axis milling unit 6.0 kW
max. 23,170 rpm, max. tool diameter 20 mm

1 4-axis circular saw unit 3.0 kW

1 5-axis tilting circular saw unit
Saw blade diameter 550 mm

1 Automatic vacuum transport system:
Maximum panel weight 500 kg

1 Lifting table for component loading 2600 x 6000 mm
Maximum load 4.0 t

1 Lifting table for component ejection 2600 x 6000 mm
Maximum load 4.0 t

1 Central lubrication system SPM2
1 Label printer at the control panel
1 Extended access control for component removal
Roller rails in the lifting table
