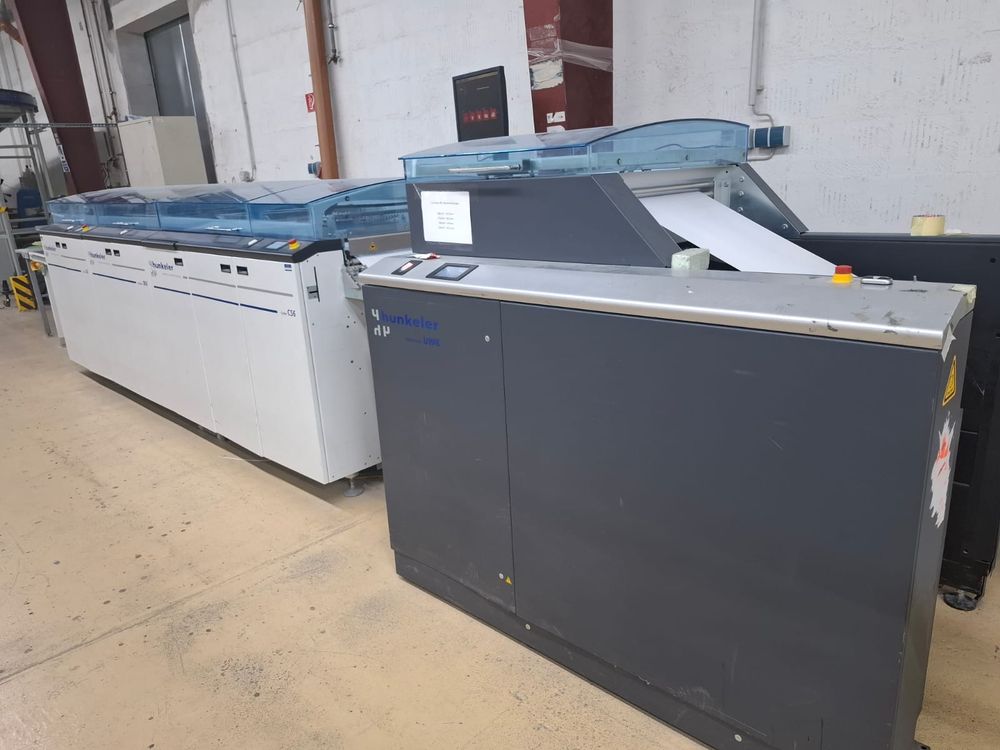

Hunkeler Digital Book Block Line For Roll-to-Stack Production

Digital Book Block Line For Roll-to-Stack Production (Web Finishing) Consisting:
UW6 Unwinder
Cross Cutter CS6
SE6 Separator Unit
High Capacity LS6 Stacker
TB6 Coveyor Belt
Stack Separation and Stack Offset are Done without Printerstops.
Sheets Arriving From The Pre-Processing Module
Are Transported On The Stacking Table Using Vacuum Belts Which Allow Very Careful Handling Of The Sheets Avoiding Any Damage Of The Printed Image.
Stack Separation Is Accomplished Without Printer Stops In Shortest Time.
The Dynamic CS6 Cutter Interrupts
The Sheet Stream For Less Than a Second To Allow
The LS6 Stacker to Insert a New Stacking Table For The Next Stack.
Afterwards, Stacks Are Ejected On To The Conveyor Belt.
The LS6 Stacker Can Handle 1-Up To 4-Up Sheet Streams Delivered By The SE6 Separation, Alignment And Offset Module

Technical Details:
Web Width 165 - 520.7 mm / 6.5'' - 20.5''
Paper Weight 40 - 300g/m 2 / 40 - 300gsm
Stack Height Max. 250mm / Max. 9.8"
Web Speed 10 - 150m/min / 33 - 490ft/min.
