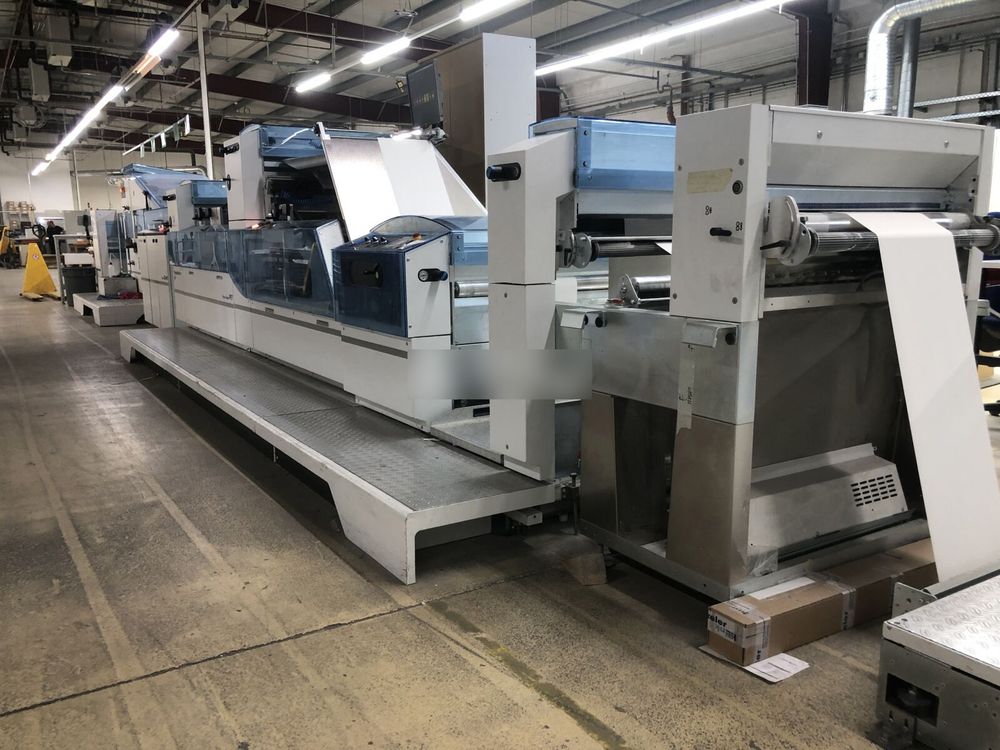

Hunkeler LC7-30 + PF7 + CS6-HS + SD7-II Digital Book Block Production

Digital Book Block Production for 4-page, 6-page, and 8-page production: LC7-30 + PF7 + CS6-HS + SD7-II

Equipment :
UW8-W – Unwinder / Reel Stand (optional)
Year: 2014
Max. reel diameter: 1,370 mm / 54"

LC7-30 – Loop Control
Year: 2021
Web infeed device LC7-30 LXM32
Vacuum-stabilized loop draw

PF7 – Plowfolder
Year: 2021
Speed package: 150 m/min
Longitudinal perforation (web transport 3 & 4)
4× perforation blades z67 (cut/bridge 2.0/1.5)
Two fold stations (parallel fold right-down, left-down)

CS6-HS – Cross-Cutter
Speed package: 150 m/min
Dynamic cutting (DynaCut)
Automatic register CS6 with PF7 (read from above)
DataMatrix camera reader
X-Reader control unit
Print mark reader (top)
Operating console (line control)

SD7-II – Stacker / Delivery
Hunkeler SD7-II (star wheel stacker)
Speed package: 150 m/min
Automatic vibrator/jogger positioning
Pre-gluing of signatures at spine (hotmelt dots)
Output conveyor TB-2.0m

HP Pagewide Web T240 with RS8 Roll Splicer (optional)
HP roll-to-roll digital printing machine
Hunkeler RS8 roll splicer for automatic roll changes
Available on request

RW8 Rewinder (optional)
Year: 2022
Max. roll diameter: 1.320 mm (52")
Max. web width: 584 mm (23")

WB7-30 – Web Buffer (optional)
Year: 2021
Hunkeler WB7-30
Buffer capacity: 26 m
90° web diversion (infeed and outfeed)
Paper kit included

Eltex Digimoister (optional)
Electrostatic re-moistening system for paper conditioning
Contactless operation with patented pre-charging technology
Two-component nozzle technology
Integrates inline with high-speed digital printing machines

WI8 Web Inspection (optional)
Comprehensive quality control: color accuracy, positioning, contours, smearing, color bleeding, data validation
CIS (Contact Image Sensor) scan bars for each page
22′′ multi-touch LCD operator monitor
Controller box included
Modular system, expandable to full tracking solution

Line Control & Interface (May require a service subscription with the manufacturer)
Line Interface LI4/6 V4
E-Stop emergency stop box
Neutral printer interface (×2)
Remote Assist (incl. tablet access)
Software: AutoRegister, DynaCut

Technical Details :
Parameter Value
Max. speed 150 m/min (492 ft/min)
Web width (paper) 254–571 mm / 10"–22.5"
Format length 177–355 mm / 7"–14"
Paper weight 60–150 g/m2
Max. stack height 120 mm
Max. reel diameter 1,370 mm / 54"
Cross-cut type Single cut (rotary)
Document control DataMatrix ECC200 (read from above)
Fold types Parallel fold (4-pp), Wrapfold (6-pp), Double parallel fold (8-pp)
Signature width – 4-pp 127–279 mm / 5"–11"
Signature width – 6-pp 127–254 mm / 5"–10"
Signature width – 8-pp 127–190 mm / 5"–7.5"
Fixed web edge Left / Centre
