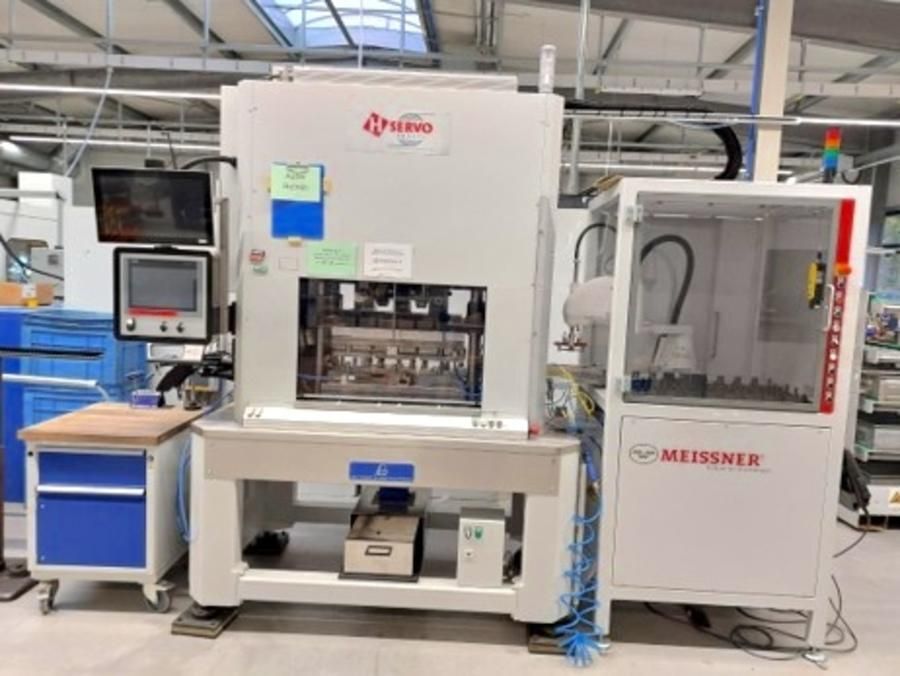

Huras NKV 180-650
EUROPE (Western and Northern)
Servo press for automation tasks and punching processes
Fields of application: try-out and pre-series production / production of punched parts / punched strip overmoulding / packaging / assembly
Freely programmable speed profiles and motion sequences from 1 - 150 strokes/min
Setup in inching mode with full press force
Nominal press force 180 kN
Stroke height 5 - 50 mm (freely programmable)
Stroke frequency / number of strokes 1 - 150 strokes/min
Ram adjustment +/- 1 mm
BDC dimension / installation space at BDC 274 mm
Passage left / right 210 mm
Tool installation space / press table/ram surface 650 x 450 mm LW
Table opening 490 x 140 mm LW
Punching direction from left to right
Drive technology dynamic servo direct drive Lenze
Drive power 15.8 kW
Operating pressure 5 bar
Control Siemens S7-1500
Swivelling touchscreen panel Siemens Simatic HMI TPI1200 12”
Dynamic servo feed unit VS-125
Transport dimensions approx. 1760 x 1040 x 2555 mm LWH
Weight approx. 3000 kg
