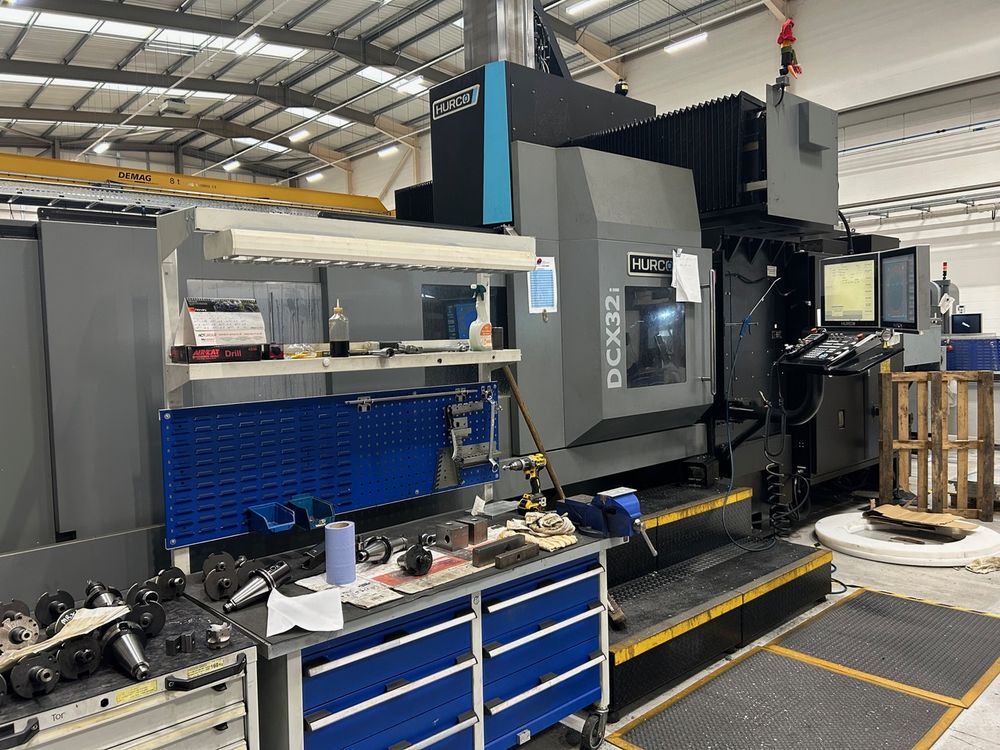

Hurco DCX32 3 Axis

Hurco DCX32
2015

control Hurco Winmax 5
distance between frames 2130 mm
machine dimensions 9960 x 5935 x 5070 mm
machine weight 34940 kg
maximum tool diameter 125 mm
maximum tool length 300 mm
maximum tool weight 15 kg
maximum workpiece weight 11000 kg
minimum height under spindle 164 mm
maximum height under spindle 1084 mm
rapid feedrate X 15 m/min
rapid feedrate Y 15 m/min
rapid feedrate Z 10 m/min
spindle motor power 80 kW
spindle speed 10000 rpm
T-slots 7 x 22 mm
table size 3000 x 1700 mm
tool change capacity 40 stations
tool size DIN50
X traverse 3200 mm
Y traverse 2100 mm
Z traverse 920 mm
coolant system
interlocked guards
low voltage light
swarf conveyor
