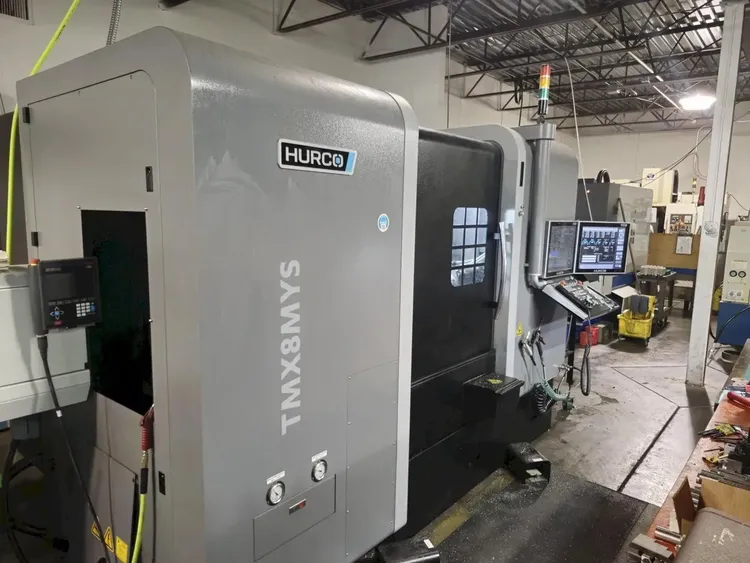

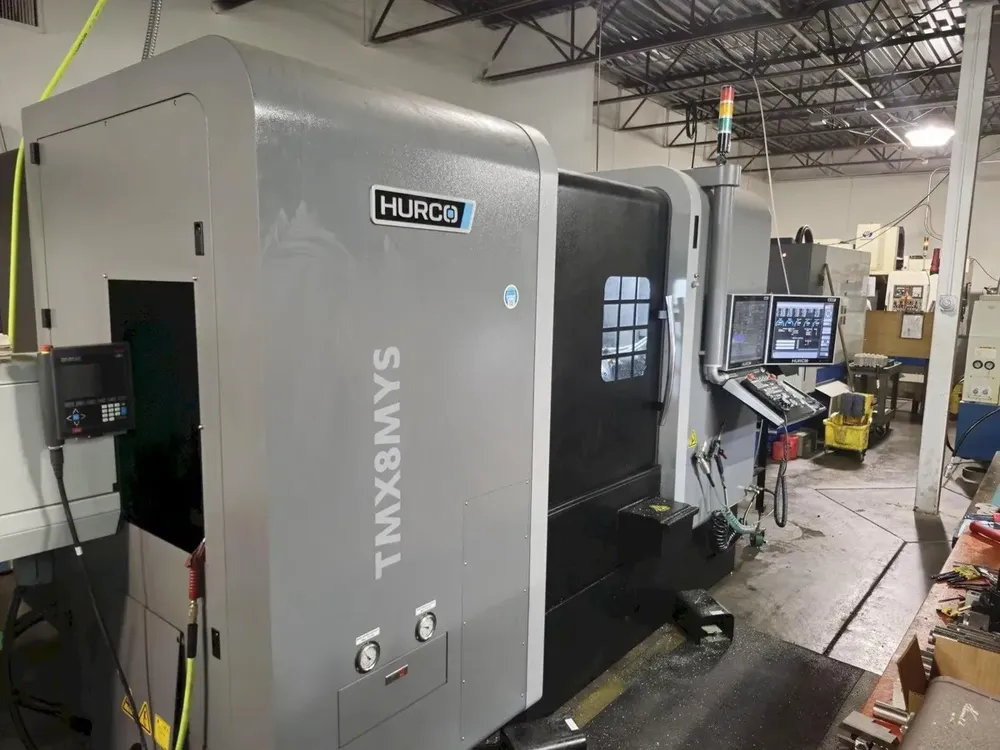

Hurco Hurco Dual Screen Technology 5,000 RPM TMX8MYSI 5 Axis

X-axis travel: 11.4"
Y-axis travel: 4.4"
Z-axis travel: 22"
W-axis travel (sub spindle): 25.2"
C-axis
Rapid traverse X-axis: 945 IPM
Rapid traverse Z-axis: 1,181 IPM
Rapid traverse Y-axis: 4.4 IPM
Control: Hurco Dual Screen Technology
Dual screen display
Hand pendant control
All-digital drives and motors
Absolute encoders on all linear axes
High-pressure coolant system
LNS Quick Load Servo short magazine barfeed
Chip conveyor
Parts catcher
Live toolholders – axial
Live toolholders – radial
Manuals
Bar capacity: 2.6"
Swing over bed: 22"
Turning diameter: 13.22"
Turning length: 22"
Distance between spindles: 28.5"
Main spindle speed: 5,000 RPM
Main spindle motor: 33 HP
Main spindle nose: A2-6
Main spindle bore: 3.1"
Sub spindle speed: 6,000 RPM
Sub spindle motor: 20 HP
Main chuck size: 8"
Sub chuck size: 6"
Live tool spindle speed: 5,000 RPM
Live tool spindle motor: 8.4 HP
Turret: 12 stations
