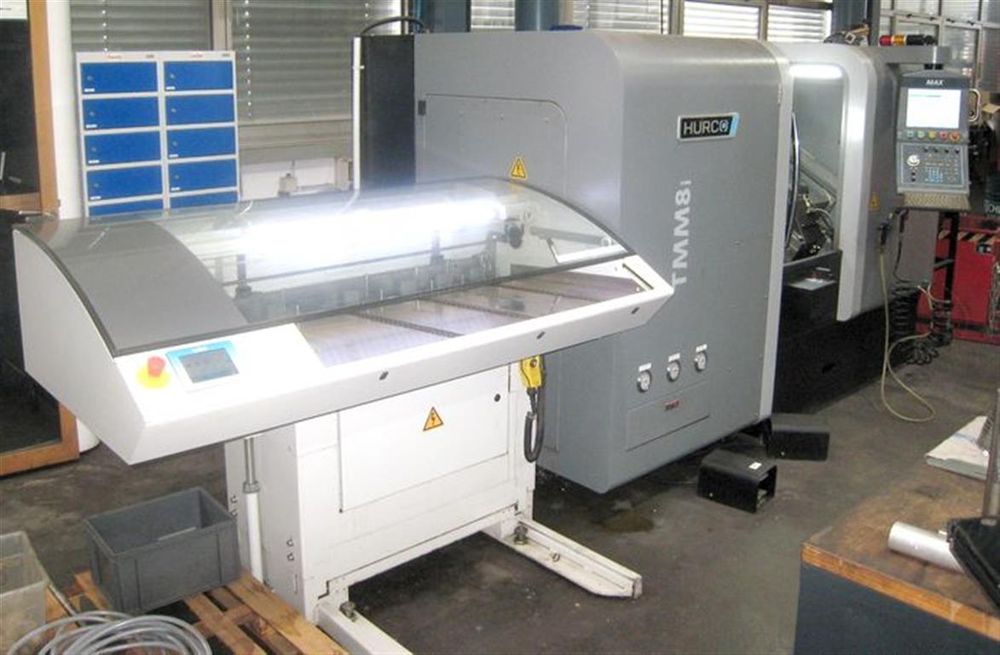

Hurco SingleMAX 4,800 rpm TMM 8i 3 Axis

X-axis travel: 198 mm
Z-axis travel: 508 mm
C-axis resolution: 0.01°
Control: SingleMAX
DXF support
Tool eye system
Ultipockets
Synchronous threading
3D graphics
Turning diameter: 256 mm
Turning length: 455 mm
Swing over slide: 260 mm
Spindle bore: 52 mm
Main spindle speed: 4,800 rpm
Main spindle motor power: 18 / 11 kW
Driven tool speed: 5,000 rpm
Driven tool motor power: 4.4 kW
Rapid traverse X-axis: 19 m/min
Rapid traverse Z-axis: 24 m/min
Turret: 12 positions
Tool holder type: VDI 30
Driven tool stations: 12
3-jaw chuck: 200 mm
Hollow clamping cylinder
Tailstock
Chip conveyor
Bar loader ILS-BREUNING MUK 7012-III
Power-on hours: 9,500 h
Main spindle hours: 2,000 h
Driven tool hours: 300 h
Total power requirement: 28 kVA
Machine dimensions: 2.9 x 2.3 x 2.2 m
Machine weight: 4,500 kg
