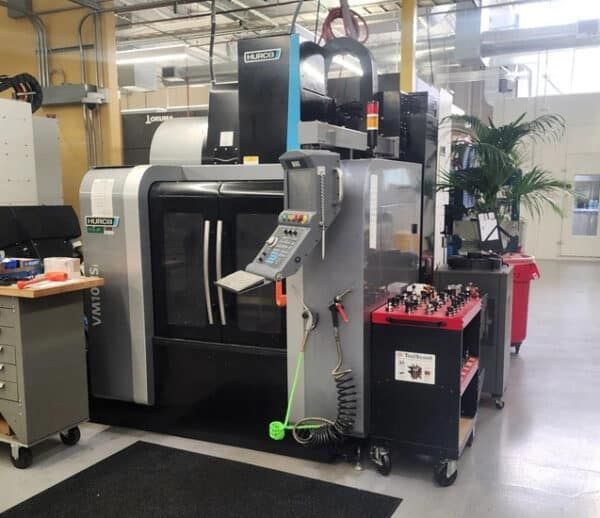

Hurco VM10HSi 3 Axis

HURCO VM10HSi
2013

X axis travel: 26.02 in
Y axis travel: 16.02 in
Z axis travel: 20 in
T-slot size: 3 x 0.71 in
Table size: 30 x 16 in
Max weight on table: 3,300 lbs
Spindle nose to table: 4.0 in
Max spindle speed: 20,000 rpm
Spindle power (peak – 1 min): 11.4 hp
Spindle torque (peak – 1 min): 4.0 ft-lbs @ 1500 rpm
Tool type: BT30
Number of tools: 20
Max tool diameter: 3.15 in
Max tool length: 9.8 in
Max tool weight: 6.6 lbs
Rapid traverse X, Y, Z axis: 1,102 in/min
Max programmable feed rate: 1,102 in/min
Required floor space: 126.1 x 133.7 in
Machine height: 101.0 in
Machine weight: 6,746 lbs
