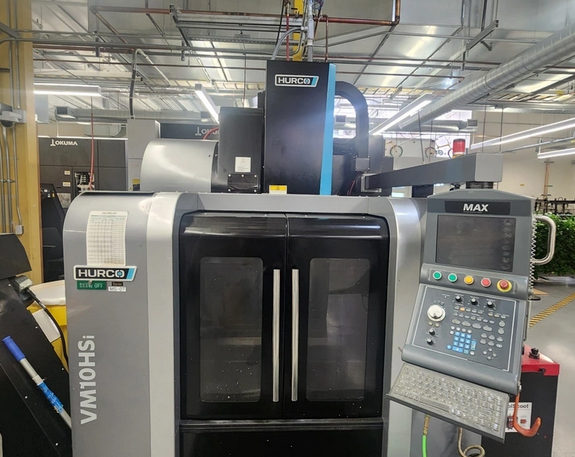

Hurco VM10HSi 3 Axis

HURCO VM10HSi
2013

X Axis Travel: 26.02 in (660 mm)
Y Axis Travel: 16.02 in (406 mm)
Z Axis Travel: 20 in (508 mm)
T-Slot Size: 3 x 0.71 in (3 x 18 mm)
Table Size: 30 x 16 in (762 x 406 mm)
Max Weight on Table: 3,300 lbs (1,500 kg)
Spindle Nose to Table: 4.0 in (102 mm)
Max Spindle Speed: 20,000 RPM
Spindle Power (peak - 1 min): 11.4 hp (8.5 kW)
Spindle Torque (peak - 1 min): 4.0 ft-lbs @1500 RPM (5.4 Nm @1500 RPM)
Tool Type: BT30
Number of Tools: 20
Max Tool Diameter: 3.15 in (80 mm)
Max Tool Length: 9.8 in (250 mm)
Max Tool Weight: 6.6 lbs (3.0 kg)
Rapid Traverse X/Y/Z: 1,102 in/min (28 m/min)
Max Programmable Feed Rate: 1,102 in/min (28 m/min)
Required Floor Space: 126.1 x 133.7 in (3,204 x 3,395 mm)
Machine Height: 101.0 in (2,564 mm)
Machine Weight: 6,746 lbs (3,060 kg)
