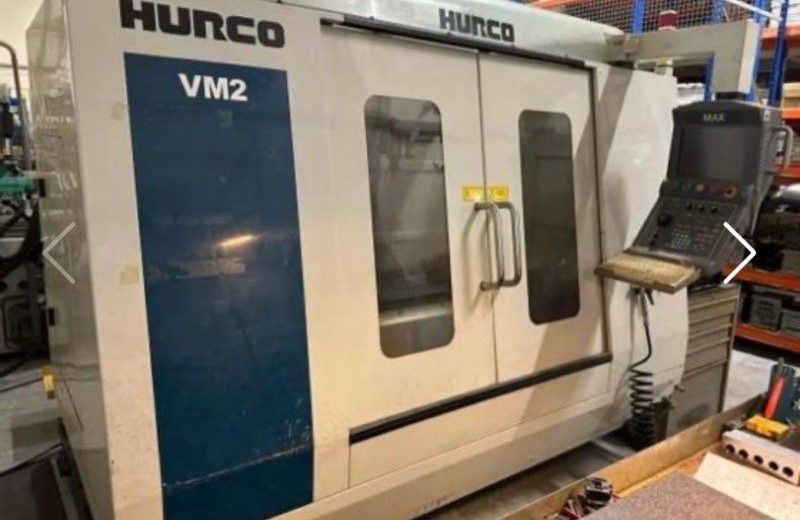

Hurco VM2 machining center 3 Axis

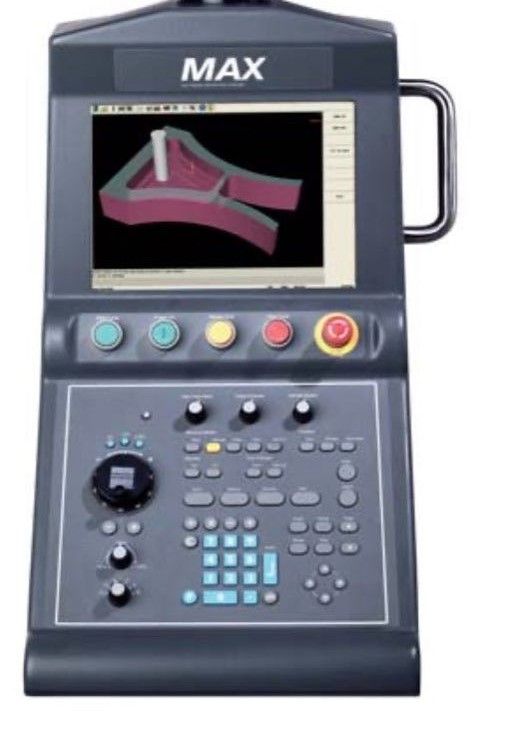

Max4 CNC control, Winmax under Windows
DXF import option.

Machine in operation
Axis Travels and Capacity
X, Y, Z Axis Travels: 1,016 x 508 x 508 mm
Table Surface: 1,168 x 508 mm
Maximum Load Capacity: 1,800 kg
Distance from Spindle Nose to Table (Min/Max): 102 / 610 mm
T-Slot Size: 5 x 18 mm

Spindle
Peak Spindle Motor Speed: 10,000 rpm
Peak Spindle Motor Power: 15.0 kW
Maximum Spindle Motor Torque: 82.3 Nm @ 1,740 rpm

Tool Changer
Tool Type: CAT/BT 40
Number of Tools: 24
Maximum Tool Diameter: 80 mm
Maximum Tool Length: 250 mm mm
Maximum Tool Weight 7 kg

Feed Speeds
Rapid Feed Speed ​​X, Y, Z Axes 28 m/minute
Programmable Maximum Feed Speed ​​28 m/minute

Machine Dimensions
Floor Space Required 3,722 x 3,312 mm
Machine Height 2,541 mm
Machine Weight 4,140 kg
Machine Type 3-Axis
