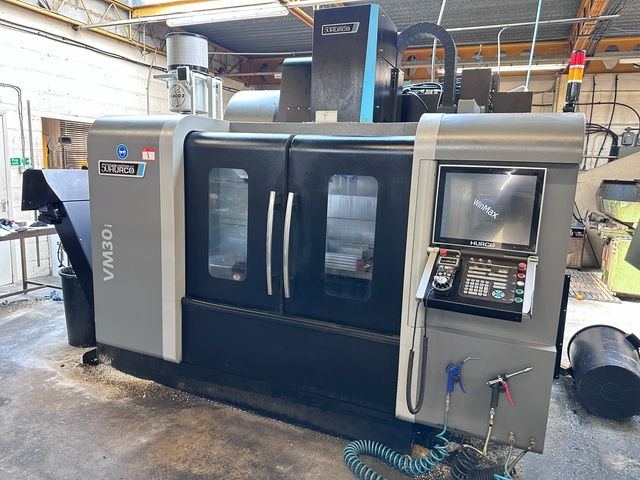

Hurco VM30i 3 Axis

HURCO VM30i
2019

Control: Winmax
Machine dimensions: 4083 x 2743 x 2576 mm
Machine weight: 4245 kg
Maximum tool diameter: 90 mm
Maximum tool length: 250 mm
Maximum tool weight: 7 kg
Maximum workpiece weight: 1800 kg
Minimum height under spindle: 101 mm
Maximum height under spindle: 609 mm
Rapid feedrates: 28 m/min
Spindle motor power: 15 kW
Spindle speed: 10000 rpm
T-slots: 5 x 18 mm
Table size: 1321 x 457 mm
Tool change capacity: 30 stations
Tool size: DIN40
X-axis travel: 1270 mm
Y-axis travel: 508 mm
Z-axis travel: 508 mm
Coolant system
Interlocked guards
Low voltage light
Remote hand wheel
Swarf conveyor
