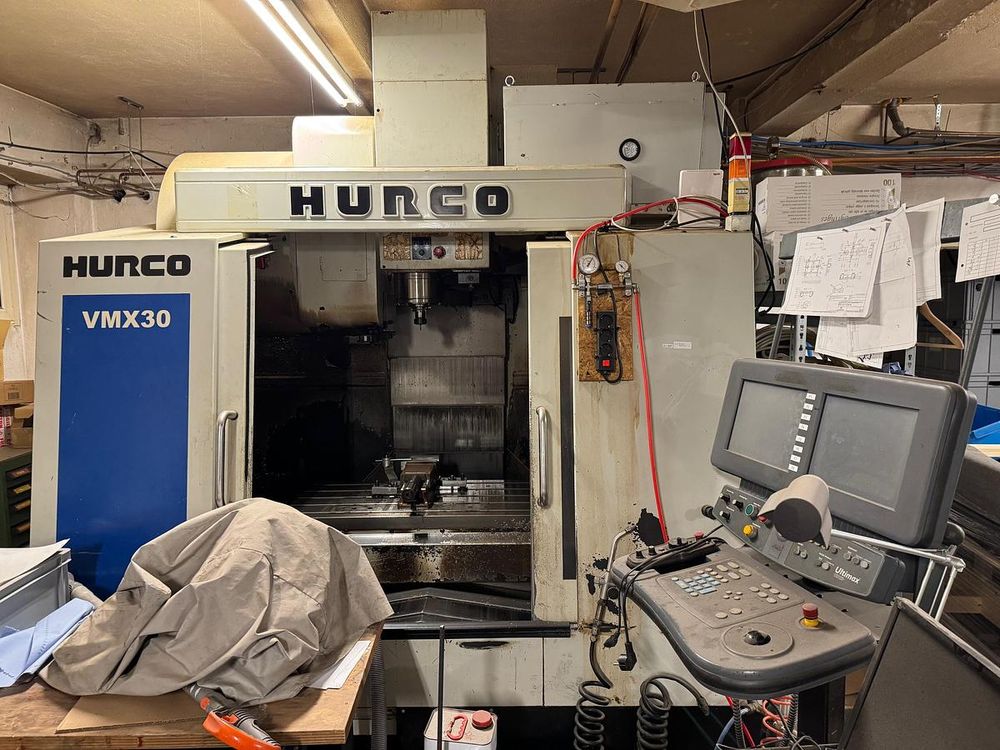

Hurco VMX 30 3 Axis

Axis travel X 760 mm
Axis travel Y 510 mm
Axis travel Z 610 mm
Control ULTIMAX4
Linear guideways in X Y Z axes
Table size 1020 × 510 mm
T-slots 5 × 18 mm × 100 mm
Distance spindle to table 150–762 mm
Spindle taper ISO 40 DIN 69871
Spindle speed 10–10000 rpm
Spindle motor power 11 kW
Maximum torque 236 Nm
Constant power from 500 rpm
Feedrate 3–7600 mm/min
Milling feed 3–11400 mm/min
Positioning accuracy ±0.01 mm
Repeatability ±0.005 mm
Table load capacity 1000 kg
Automatic tool changer 24 positions
Maximum tool diameter 80 mm
Maximum tool length 300 mm
Maximum tool weight 7 kg
Coolant tank 190 l
Chip conveyor
Electronic handwheel
Weight 4700 kg
Machine dimensions 3870 × 4170 × 2775 mm
