1/1

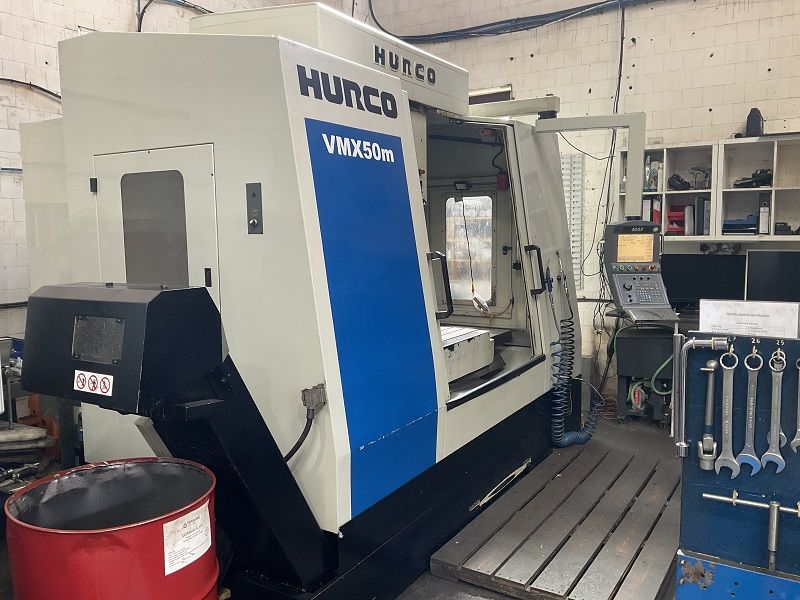

Hurco VMX50M 3 Axis
Ref :
2803174-3-GO
Condition :
Used
Manufacturer :
Hurco
Model :
VMX50M
Nb Of Axis :
3 Axis
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-Axis Travel: 1270 mm
Y-Axis Travel: 655 mm
Z-Axis Travel: 610 mm
Table Size: 1500 x 660 mm
Maximum Table Load: 1360 kg
Spindle Speed: 10,000 RPM
Maximum Torque: 237 Nm @ 600 RPM
A-Axis
Maximum Clamping Diameter: 400 mm
Maximum Clamping Diameter with Riser Block: 585 mm
Through Bore: 70 mm
Maximum Length with Centre: 1270 mm
Chuck Bore: 80 mm
Maximum Horizontal Load: 300 kg
Maximum Vertical Load: 125 kg
Tool Magazine Capacity: 24 Positions
Maximum Tool Length: 300 mm
Maximum Tool Diameter: 79 mm
Maximum Tool Weight: 7 kg
