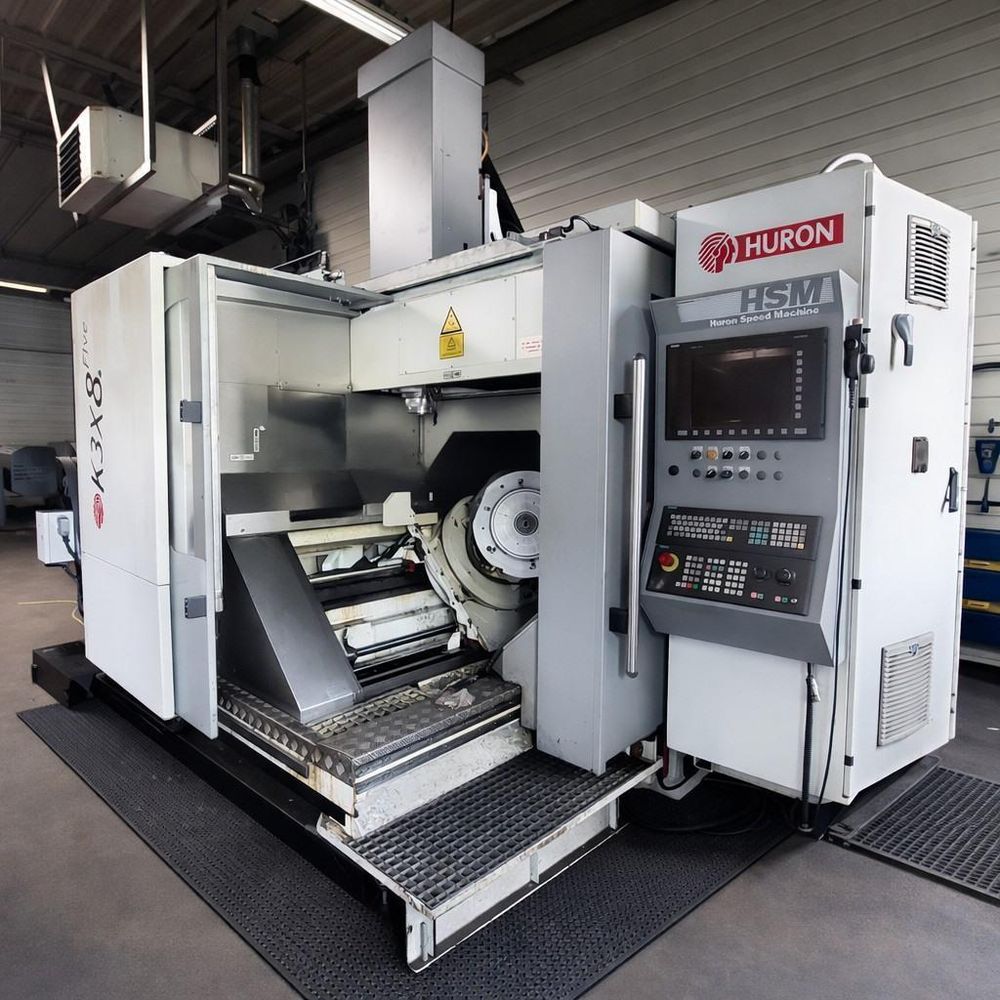

Huron K3X8F 5 Axis

X-axis travel 780 mm
Y-axis travel 700 mm
Z-axis travel 500 mm
A-axis tilt +30° / -180°
C-axis rotation 360° continuous
Control Siemens
5-axis simultaneous machining
High pressure cooling through spindle
Chip conveyor
Vibration monitoring
Laser tool probe Blum Micro
Workpiece probe Blum TC52
Spindle speed 16000 rpm
Spindle power 36 kW
Spindle taper HSK 63A
Rapid traverse 50000 mm/min
Table diameter 500 mm
Max workpiece diameter 700 mm
Max workpiece weight 300 kg
Distance spindle nose to table 525 mm
Power requirement 50 kW
Machine length 5520 mm
Machine depth 3320 mm
Machine height 3325 mm
Machine weight 10 ton
Fanuc robot R-1000iA/100F
Fanuc controller R-30iB
