Huron MU 40 2066U/min
Ref :
2719845-3-AW
Condition :
Used
Manufacturer :
Huron
Model :
MU 40
Spindle Speed :
2066U/min
Year(s) :
1976
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

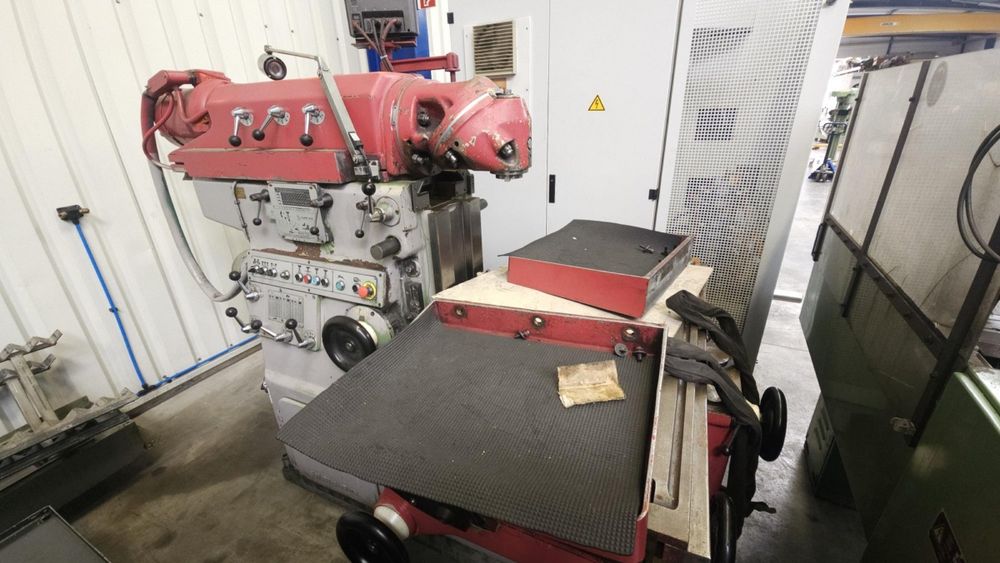

HURON MU 40
Year of manufacture 1976
x-travel1100mm
y-travel700mm
z-travel550mm
surface area1435 x 700mm
distance spindle /table-10 / 540mm
Number of grooves - width - spacing8 - 16 - 80mm
min/max distance top edge table - bottom edge spin0 - 540mm
spindle taperISO 40
spindle turning speed range30 - 2066U/min
feed - longitudinal/cross1,6 - 820mm/min
vertical feeds:0,8 - 410mm/min
Rapid traverse speed lengthwise and crosswise2800mm/min.
vertical rapid traverse speed1400mm/min
total power requirement15kW
weight of the machine ca.4,2t
dimensions of the machine ca.2,7 x 1,435 x 1,74m
