Huxley Bertram Razor Blade Assembly Machine

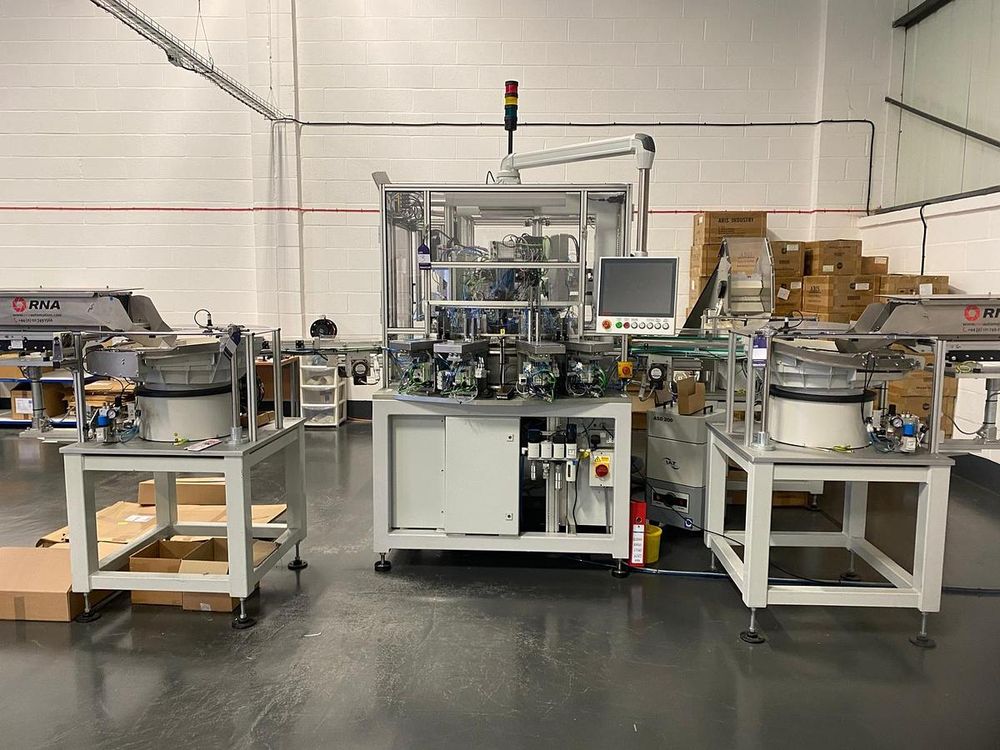

This machine assembles twin blade razor heads
Machine Process
The carcass is fed into the machine via an RNA vibratory sorter bowl
One blade is fitted via a stack feeder
A spacer is fitted next via a stack feeder
Then a second blade is fitted via a stack feeder
Finally a top protector piece is fitted fed by a second RNA vibratory sorter bowl
After the welding station is a quality control camera system (Hermann HMI and Keyence camera) and a reject station
When the stack up is complete it is ultrasonically welded together and then transferred into a clear plastic retainer along with 3 more
It is then transferred to a pick and place robot to place the completed assembly into a tray
Two Omron robots are present, one to fill the square plastic retainer and the other to place it into a tray

The HMI and PLC, and servo controller are made by Beckhoff
The inverter is made by Omron
The pneumatics are premonitory SMC and Festo
