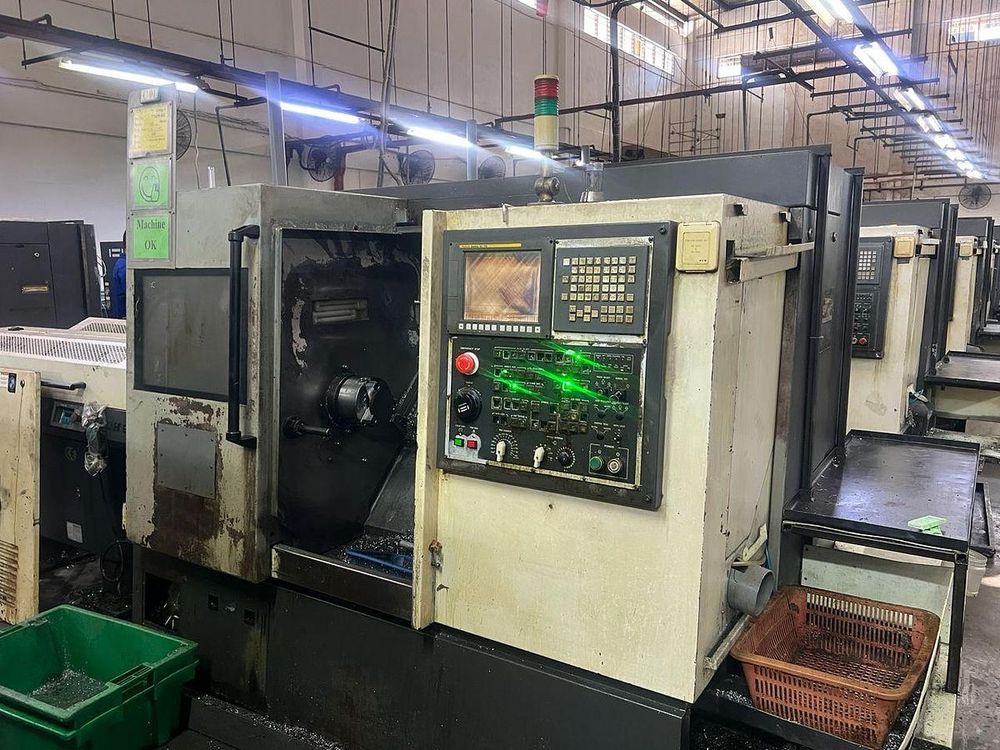

Hwacheon Fanuc Series 0i-TD Variable Cutex-160A 2 Axis

CNC Control Fanuc Series 0i-TD
Swing Over Bed Ø550 mm (21.65")
Max Cutting Diameter Ø300 mm (11.81")
Standard Cutting Diameter Ø186 mm (7.32")
Max Cutting Length 300 mm (11.81")
Rapid Traverse X Axis 36 m/min
Rapid Traverse Z Axis 36 m/min

Spindle Speed 6000 rpm
Through Spindle Hole Ø56 mm (2.20")
Max Bar Size Ø45 mm (1.77")
Spindle Nose A2-5
Spindle Bearing Inner Diameter Ø90 mm (3.54")

Number of Tool Stations 12
Turret Indexing Time 0.15 sec/step

Chuck Size 6"

Electrical Power Supply 20 kVA
Lubrication 2 L
Hydraulic 11 L
Coolant 81 L

Machine Height 1720 mm
Machine Weight 3200 kg
