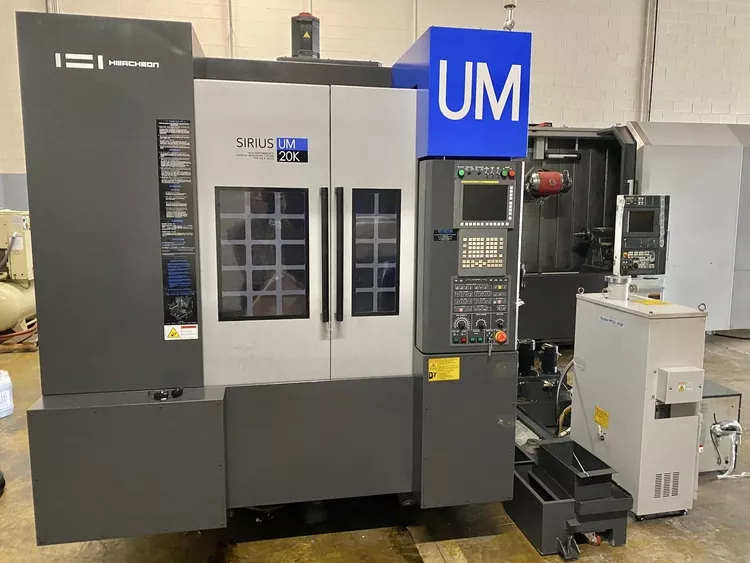

Hwacheon SIRUS UM 3 Axis

HWACHEON SIRUS UM
Year: 2012

Type: Vertical Machining Center
Travel (X): 29.5"
Travel (Y): 19.6"
Travel (Z): 17.71"
Table Size: 33.46" x 19.68"
Max Weight on Table: 1,760 lbs
Spindle Speed: 20,000 RPM
Spindle Taper: CAT 40
Main Motor Power: 30 HP
Rapid Traverse (X/Y/Z): 945 IPM
Cutting Feed Rate: 945 IPM
Spindle Nose to Table: 5.9" – 23.6"
Automatic Tool Changer: 30 tools
Tool Diameter: 3.53", 4.8"
Tool Length: 11.7"
Tool Weight: 17.6 lbs
Machine Weight: 17,600 lbs
Number of Pallets/Tables: 1
A-Axis Travel: 0
B-Axis Travel: 0
C-Axis Travel (Table Indexing): 0
Number of Gear Ranges: 0
Vertical Turning Table Size: 0
Vertical Table Spindle Speed: 0
Vertical Table Spindle HP: 0
Integrated NC Rotary Table Size: 0

Spindle chiller
All available manuals
Additional block skip
Programmable mirror image
Handheld remote MPG
FANUC 31i-A CNC control
Embedded Ethernet
Fast Ethernet software
Helical interpolation
Custom macro / macro executor
200 tool offset pairs
Coordinate system rotation
Data server function
A1 contour control II
High-speed HRV3 function
Tool offset memory C
Tool nose radius compensation
Prepped and wired for 4th axis
Through-spindle coolant
Graphic function
Scale feedback system (X, Y, Z axis)
