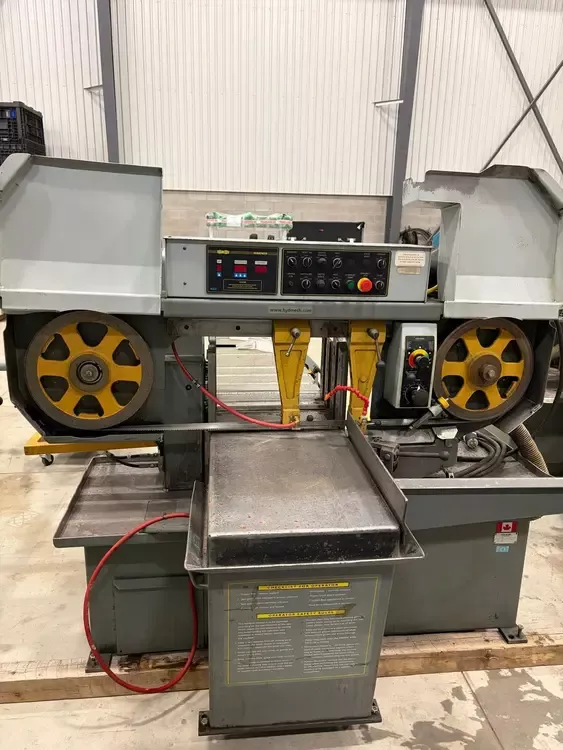

Hyd-Mech S-20A SERIES II Vertical SemiAutomatic

Rectangular capacity: 13" height x 18" width
Round capacity: 12" diameter at 45°
Automatic operation
Blade motor: 5 HP direct drive
Blade drive motor: 3 HP
Hydraulic pump motor: 2 HP
Blade length: 13' 6"
Blade width: 1"
Blade thickness: 0.032"
Blade speed: 75 – 350 SFM variable
Blade guides: Carbide
Blade wheel diameter: 16"
Hydraulic shuttle stroke: 29"
PLC touch screen control
Programmable up to 100 jobs
Coolant pump flow: 3.5 GPM
Coolant reservoir capacity: 6 gallons
Table height: 30"
Maximum work load: 5000 lbs
Machine weight: 3000 lbs
Overall dimensions: 84" x 120" x 56"
Power supply: 240V / 3ph / 60Hz
