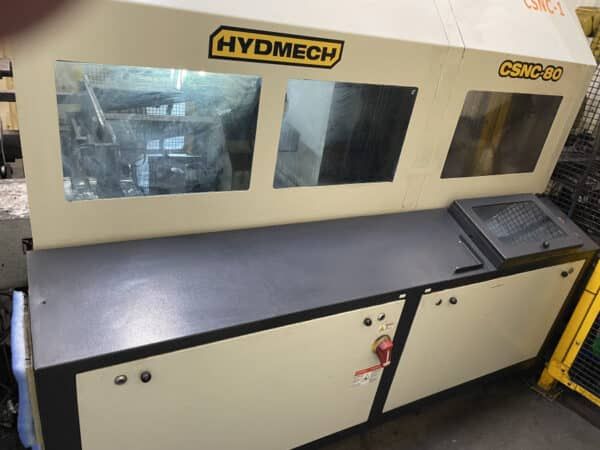

HydMech CSNC-80 Carbide Circular Saw CNC CONTROL Mitsubishi PLC Controller

Cutting capacity round 90°: 0.4″–3.15″
Cutting capacity square 90°: 0.4″–2.36″
Blade drive: 15 HP VFD
Blade speed: 50–200 MPM
Blade size: 285 mm x 1.7 mm kerf
Bar stock length: 10′–20′
Trim cut: Zero or programmable from 0.4′ or longer
Cut off length: Min 0.24″ up to 39″
Single stroke: 40″
Remnant length: 3.35″ + cut length + cutter thickness
Hydraulic motor: 3 HP
Bar loading magazine width: 27.9″ for rounds
Machine capacity: 6,613 lbs
Machine weight: 6,613 lbs
Dimensions (W x L x H): 85″ x 102″ x 88″

Features / Options / Equipment:
Mitsubishi PLC controller with 200 program memory
Job monitoring with cycle time, job duration, part count, and AMP load setting
Heavy-duty saw head driven by ball screw and AC servo drive
Blade cooling system (patent pending)
Automatic oil lubrication of all moving parts
Variable vise pressure control with dial gauge – two stations
Cooling nozzle
Triple jet blade lubrication system with low coolant alarm
Hydraulic rotating chip brush (bi-directional)
Chip auger
Bundle loader
Filtermist FX6002 with prefilter and HEPA filter
