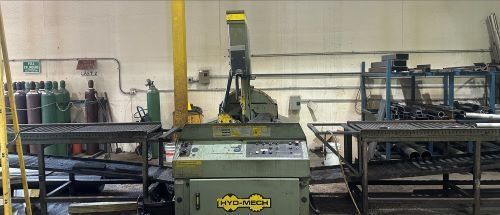

HydMech V-18 Band Saw CNC CONTROL

Horizontal cutting capacity: 18 in
Vertical cutting capacity: 20 in
Cutting capacity at 45° left: 13 in
Cutting capacity at 45° right: 13 in
Blade size width: 1.25 in
Blade length: 14 ft 6 in
Blade thickness: 0.042 in
Blade speed minimum: 65 SFM
Blade speed maximum: 385 SFM
Blade wheel diameter: 19 in
Blade drive motor power: 5 HP
Hydraulic drive motor power: 2 HP
Hydraulic pump flow: 6.5 GPM
Coolant pump flow: 3.5 GPM
Coolant pump power: 150 W
Hydraulic pressure range: 0–300 PSI
System pressure: 650 PSI
Feed rate range: 0–15 IPM
Table height: 38 in
Hydraulic tank capacity: 9 gal
Coolant tank capacity: 30 gal
Machine length: 100 in
Machine width: 55 in
Machine height: 97 in
Machine weight: 4,500 lb

Features / Equipment
Vertical bandsaw
Horizontal cutting capability
Hydraulic blade tension
Carbide blade guides
Pressure-compensated hydraulic system
Constant-pressure variable-flow hydraulics
Hydraulic full-stroke vises
Hydraulically positioned and locked vises
Hydraulically positioned and locked guide arm
Tilting head left and right 45°
Independent feed rate control
