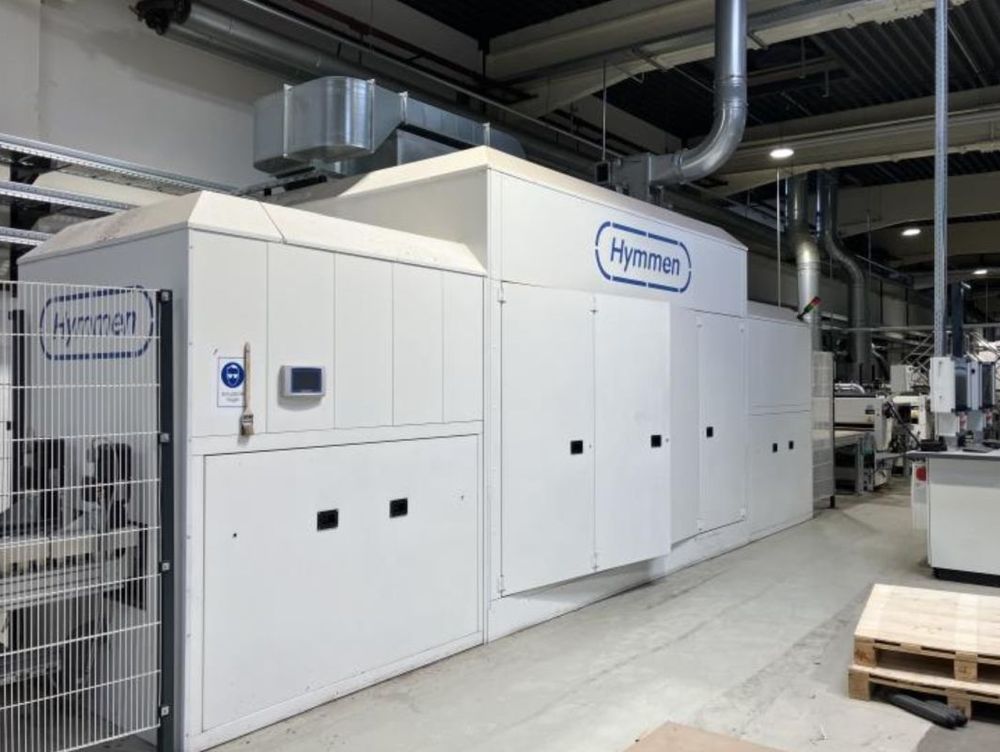

Hymmen JUPITER – JPT C 4 548 mm

Digital printing unit
Nominal width: 680 mm
Maximum printing width: 548 mm (expandable to 680 mm)
Maximum panel width in OFS: 510 mm
Working height: 900 mm (+50 mm)
Processing: printing and top coating from above, counter-coating from below
Operating mode: dual-lane up to max. 255 mm part width; otherwise single-lane
System speed: 8-65 m/min
Printing speed: up to 50 m/min

Jupiter digital printing unit (JPT):
Number of colors: 4
Printheads per color: 8 (max. 10 possible)
Free slots for additional colors: 6
Printhead type: XAAR 2001

DLE structure printing unit:
Print rows: 1
Printheads per row: 8 (max. 10 possible)
Free slots for additional rows: 1
Total printheads: 8
Printhead type: XAAR 1003

Raw panel specifications:
Length: 600-2800 mm
Raw mother-board width before longitudinal ripping: 900-1260 mm
Panels are longitudinally divided prior to digital printing and coating operations
Thickness: 2-12 mm (no restrictions); up to 28 mm with speed limitations

Cutting format saw:
Longitudinal ripping system with up to 5 saw cuts plus 2 trimming units for production of finished plank widths from 160-510 mm

Finished panel specifications:
Length: 600-2800 mm
Width: 160-510 mm
Thickness: 2-12 mm (no restrictions); up to 28 mm with speed limitations

Feeding system (infeed):
Type: vacuum portal
Feeding stations: 2
Discharge positions: 1
Max feeding capacity: 8 cycles/min; with double stacking: 16 panels/min
Identical stacks per station: up to panel length 1550 mm = 2; =1550 mm = 1
Max stack height: 1050 mm
Max stack weight: 5000 kg (combined)
Design: without pits
Transport mode: protective plate or pallet
Protective plate (infeed): length 800-2800 mm; width 1000-1260 mm;
thickness 20-30 mm (up to 150 mm for pallets); max 80 kg per plate/pallet

Stacking system (outfeed):
Type: drop shaft
Stacking positions: 1
Max stacking capacity: 30 cycles/min
Identical stacks per position: up to panel length 1550 mm = 2; =1550 mm = 1
Max stack height: 1050 mm (alternative: 1000 mm)
Max stack weight: 5000 kg (combined) / Alternative stacking configuration maximum stack weight: 3500 kg
Design: with pits
Transport mode: protective plate or pallet
Protective plate feeding method: loading by forklift, separation by robot
Protective plate (stacking): length 800-2800 mm; width 1000-1200 mm; thickness 20-30 mm; max 80 kg per plate; material OSB or HDF

Aggregates:
Number of aggregates: 35
Process steps: feeding, cutting, cleaning, infrared heating, UV curing, coating, digital printing, structuring, excimer matting, stacking

Application:
Industrial single-pass digital printing line for high-speed surface finishing of large panels (flooring and furniture),
producing realistic wood, stone, or custom decors directly on substrates
