Hyundai CNC CONTROL 10.8 RPM HYUNDAI WIA L500LMA 2 Axis

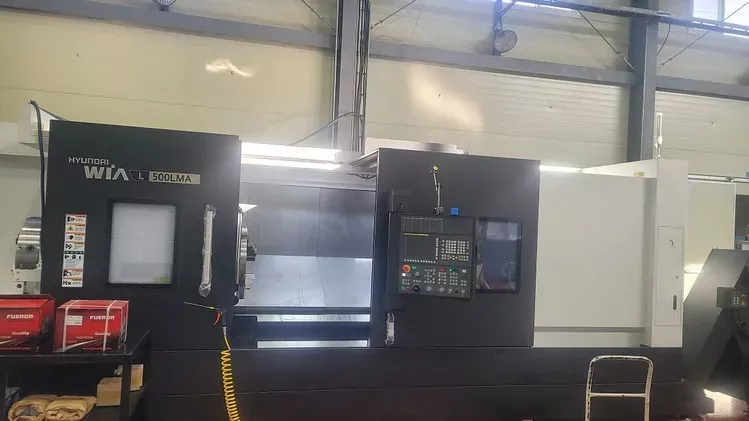

HYUNDAI WIA L500LMA
2024

Swing over bed 40.6"
Machining length 82.7"
Chuck size 24"
Spindle nose A1-15
Spindle bar capacity 10.8"
Turning diameter 27.2"
Spindle speed 10.8 RPM
Spindle horsepower 60 hp
Spindle bore diameter 10.8"
Rapid traverse rate X-axis 788 in/min
Rapid traverse rate Z-axis 709 in/min
Turret configuration 12 stations
Rotary tool spindle speed 4,000 RPM
Rotary tool spindle horsepower 15 hp
Tailstock quill diameter 5.2"
Tailstock taper MT 5
Tailstock quill travel 5.2"
Programmable tailstock Yes
Tailstock travel 82"
Number of axes 3
Bar capacity 10.8"
Tailstock Yes
Live tooling Yes
Sub spindle No
Control Fanuc 32iB CNC Color
Machine weight 33,510 lb
Thread cutting retract
Thread synchronized cutting
Variable lead threading
Tool presetter
(2) 24" 3-jaw manual chucks
10.8" bore on both front and rear spindle
One outside diameter rotary head
One inside diameter rotary head
Chip conveyor
Fanuc i Series control
200 hours on time
Heavy-duty box way construction
Programmable tailstock
