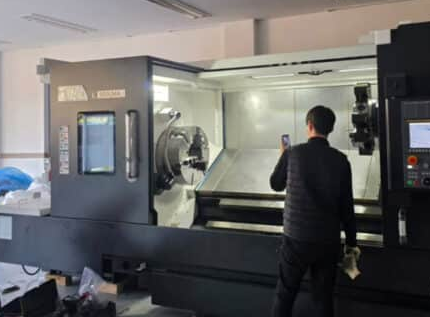

Hyundai FANUC 32i 1000 rpm WIA L500LMB 3 Axis

X-axis travel: 15.7 in
Z-axis travel: 87 in
Rapid traverse X-axis: 20 m/min
Rapid traverse Z-axis: 18 m/min
C-axis indexing: 0.001 deg
Control: FANUC 32i
Swing over bed: 40.6 in
Swing over carriage: 33.5 in
Maximum turning diameter: 27.2 in
Maximum turning length: 82.7 in
Bar capacity: 10.8 in
Spindle speed: 1000 rpm
Spindle motor power: 60/50 hp
Spindle type: Belt and 2-step gear
Live milling speed: 4000 rpm
Live milling motor power: 15/10 hp
Live milling torque max/continuous: 103.2/70.4 Nm
Number of tools: 12
Turret tool size OD: 1-1/4 in
Turret tool size ID: 2-1/2 in
Indexing time: 0.35 sec
Collet size: ER40 / BMT75
Tailstock quill diameter: 5.9 in
Tailstock quill taper: MT5
Quill travel: 5.9 in
Coolant tank capacity: 132 gal
Electric power: 50 kVA
Voltage: 220 V / 60 Hz
Machine length: 252 in
Machine width: 109 in
Machine height: 95.3 in
Machine weight: 33510 lb

Features / options / equipment
FANUC 32i CNC control
Live milling
C-axis
Front manual chuck 24 in
Rear manual chuck 24 in
Chip conveyor
Coolant system
