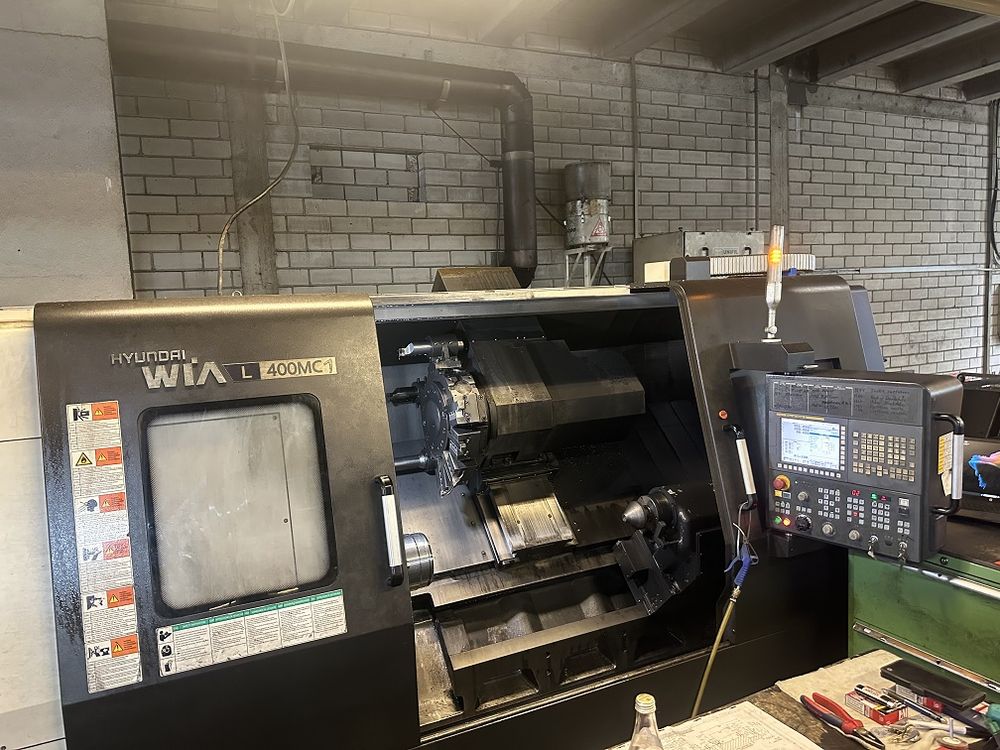

Hyundai Fanuc 32i-Model B, Manual Guide i 2000 rpm WIA L400MC 2 Axis

X-axis Travel – 320 mm
Z-axis Travel – 1200 mm
Max Turning Diameter – 530 mm
Max Turning Length – 500 mm
Control – Fanuc 32i-Model B, Manual Guide i
Bar Capacity – 117 mm
Main Spindle Drive Power – 37/30 kW
Main Spindle Torque – 3073/2490 Nm
Main Spindle Max Speed – 2000 rpm
Tool Turret – 12-position BMT75P
Driven Stations – 12
Tool Turret Drive Power – 7.5/5.5 kW
Tool Turret Max RPM – 4000
Programmable Tailstock MK#5
Main Spindle with 2-stage Gearbox
Tooleye
Swarf Conveyor
High Pressure Pump 20 bar
3-jaw Chuck Diameter – 380 mm
Tool Breakage Monitoring
Program Memory Extension
