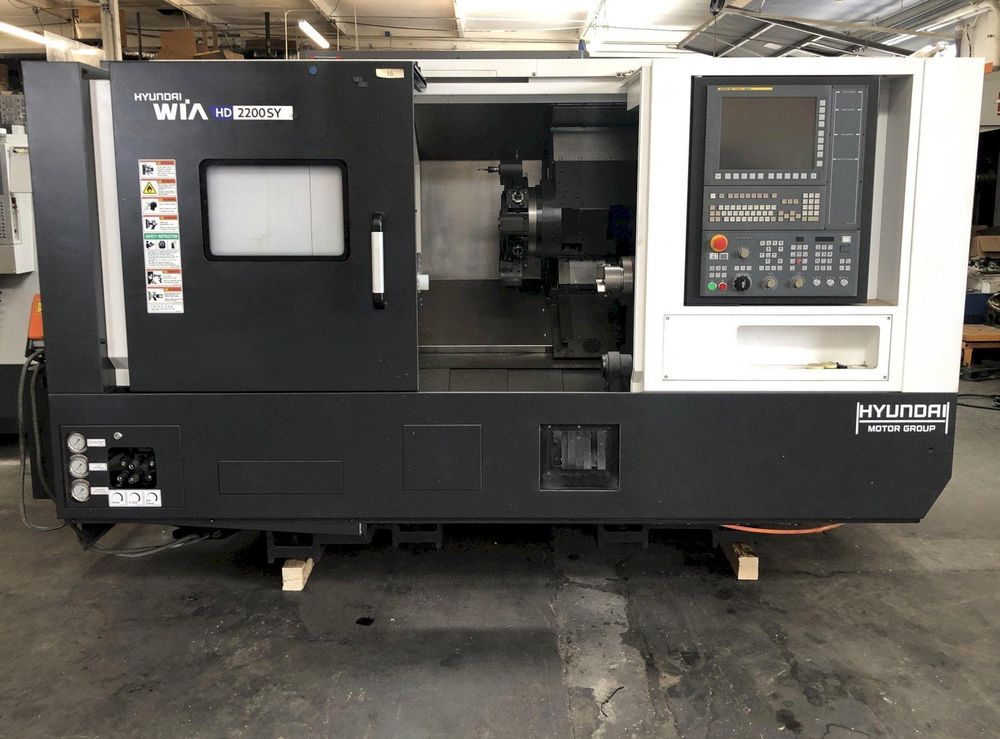

Hyundai Fanuc i Series 4,000 rpm HD2200SY 3 Axis
AMERICA North (USA-Canada-Mexico)
HYUNDAI HD2200SY
2020
Type: CNC Multi Axis Turning Center (≥3‑axis)
Control: Fanuc i Series
Max turning diameter: 11.8 in
Max turning length: 25.6 in
Chuck size main: 8 in
Chuck size sub: 5 in
Spindle RPM: 4,000 rpm
Spindle output: 25 HP
Spindle torque: 211 lbf·ft
Travel X: 8.5 in
Travel Y: 4.3 in
Travel Z: 26.8 in
Travel ZB: 26.8 in
Rapid travel X: 24 m/min
Rapid travel Y: 10 m/min
Rapid travel Z: 30 m/min
Rapid travel ZB: 24 m/min
Slide type: BOX
Number of tools: 12
Tool size: 1 in / 1.6 in
Milling tool speed: 6,000 rpm
Equipped with: Fanuc i Series Control
Equipped with: Chip conveyor
Equipped with: Separate coolant tank
Equipped with: 3‑color tower signal light
Equipped with: Full enclosure splash guard
Equipped with: Auto parts catcher
Equipped with: Y‑axis with 4.3 in stroke
Equipped with: 12‑station turret
Equipped with: Full‑contouring C‑axis
