Hyundai Fanuc Series 31i control 3500 rpm WIA L250SY 2 Axis

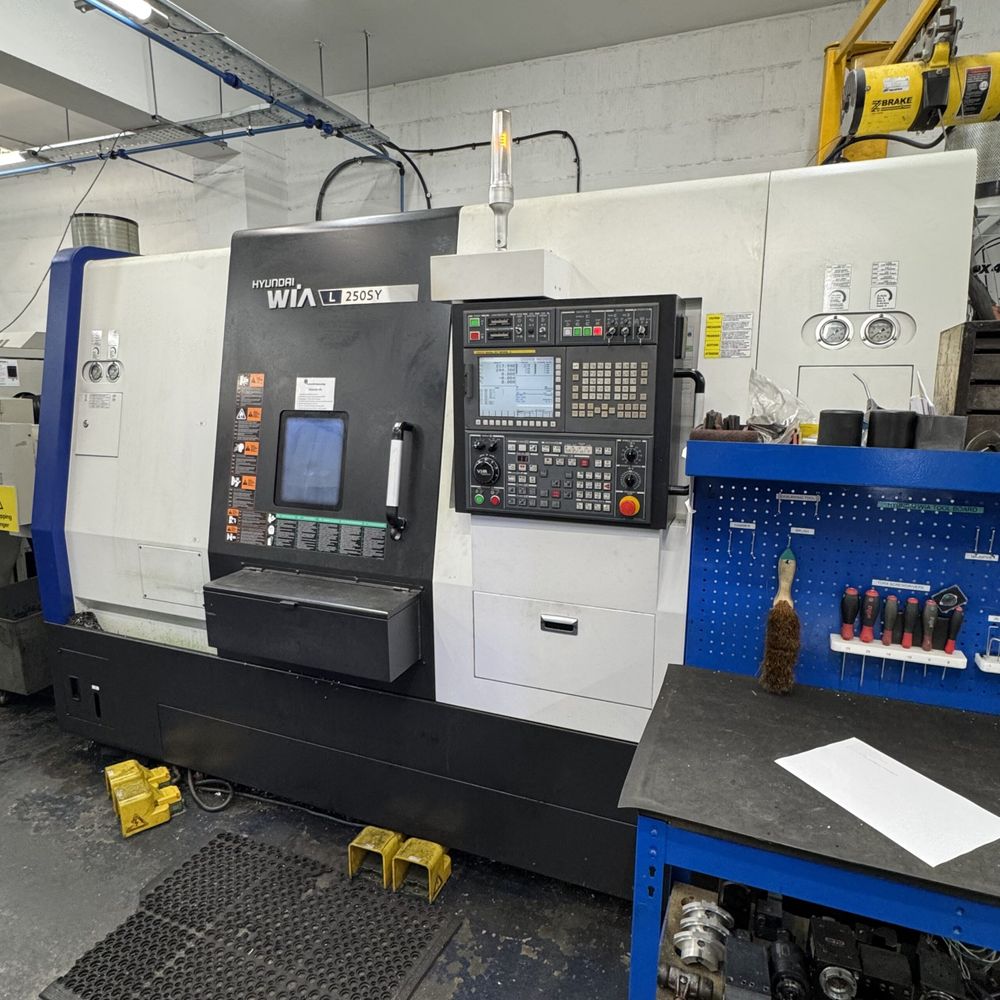

HYUNDAI WIA L250SY
Year 2015

Fanuc Series 31i control
Sub spindle
Swing over bed 620 mm
Swing over carriage 490 mm
Maximum turning diameter 310 mm
Maximum turning length 620 mm
Main spindle bar capacity 76 mm
Sub spindle bar capacity 45 mm
Main chuck size 255 mm
Sub chuck size 165 mm
Main spindle bore 95 mm
Sub spindle bore 53 mm
Main spindle speed 3500 rpm
Sub spindle speed 6000 rpm
Spindle motor power max/cont 22/18.5 kW
Spindle torque max/cont 238.2/200.3 N·m
Spindle type belt
Spindle nose A2-8 / A2-5
C-axis indexing 360° (0.001°)
X travel 230 mm
Y travel ±55 mm (total 110 mm)
Z travel 675 mm
ZB travel 700 mm
Rapid X/Y/Z/B 20/10/24/20 m/min
Box guideways
Number of tools 12
Tool size OD 25 mm²
Tool size ID 40 mm
Tool indexing time 0.33 sec/step
Y-axis configuration perpendicular
Milling motor power 5.5 kW
Milling speed 4000 rpm
Milling torque 30 N·m
Collet size 20 – ER32
Turret type VDI
Coolant tank capacity 220 L
Lubrication tank capacity 1.8 L
Spindle hours 4664
Machine dimensions 3202 x 1988 x 2181 mm
Machine weight 6500 kg
