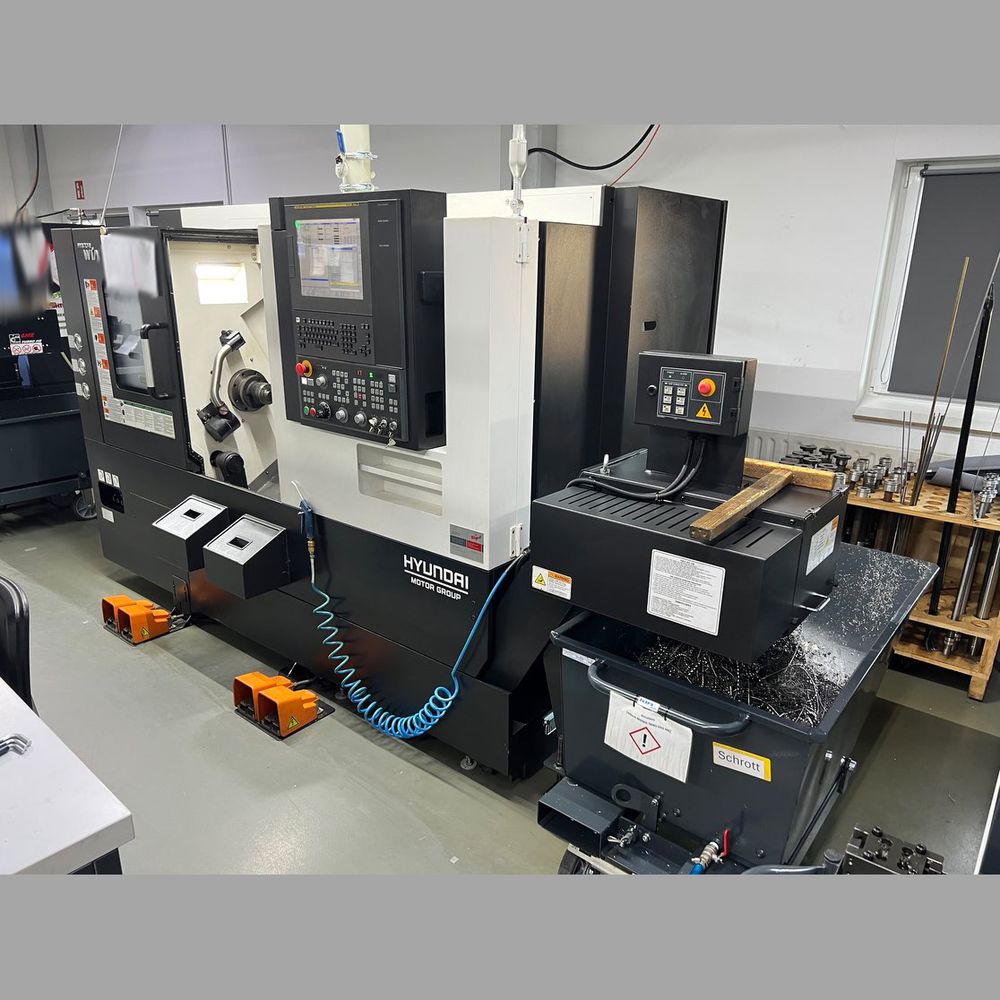

Hyundai HYUNDAI WIA Fanuc i-Series 6000 rpm WIA SE 2200 LSYA 3 Axis

X/Y/Z axis travel ? / 110 / ? mm
Axis at main spindle unit C
Axis at opposed spindle unit C/Z
Control HYUNDAI WIA Fanuc i-Series
Max turning diameter 300 mm
Max turning length 529 mm
Max swing diameter over bed 600 mm
Max clamping chuck diameter 203/125 mm
Max speed main spindle 6000 rpm
Max power main spindle at 10–40/100% duty 15/11 kW
Spindle bore main spindle 51 mm
Max speed opposed spindle 6000 rpm
Max power opposed spindle at 10–40/100% duty 7.5/3.7 kW
Spindle bore opposed spindle 32 mm
No. of turret stations/driven 12/12
Tool interface BMT 45
Mains fuse 35 A
Total power requirement 23 kVA
Machine weight 4200 kg

Features
Tool measurement in measuring arm
Fully enclosed work area
Light in working area
Preparation for central oil/emulsion mist extraction
Slat band chain chip conveyor
Internal coolant supply
Coolant unit
High pressure pump 17.5 bar
Finish-part pick-up unit
Interface for bar loader/magazine
Electronic handwheel
Warning lamp

Accessories
2 pcs 3-jaw clamping chuck
Set of tool holders for turning tools
Set of tool holders for driven tools
