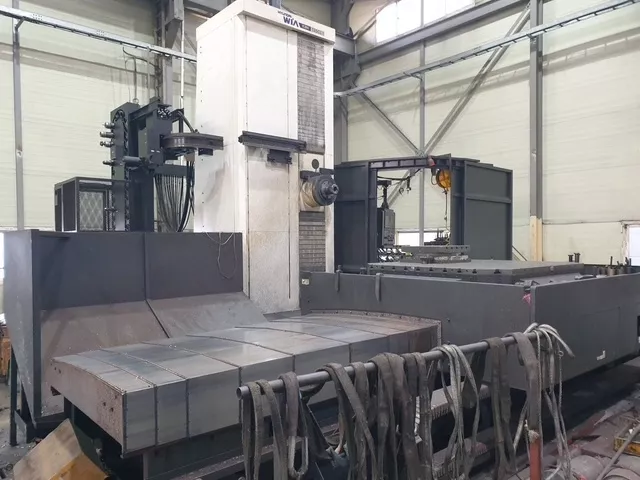

Hyundai HYUNDAI WIA KBN 135CL 5.31" 2000 RPM

HYUNDAI WIA KBN 135CL
2016

Table Size: 78.74" x 70.87"
Table Load Capacity: 33,069 lbs
Spindle Diameter: 5.31"
X Axis Travel: 157.4"
Y Axis Travel: 98.4"
Z Axis Travel: 78.7"
W Axis Travel: 27.6"
Rapid Traverse X: 276 IPM
Rapid Traverse Y: 394 IPM
Rapid Traverse Z: 394 IPM
Rapid Traverse W: 315 IPM
B Axis Indexing: 0.001 Degree
Spindle Speed: 2000 RPM
Spindle Taper: 50 CT
Main Motor: 35 HP
Automatic Tool Changer: 40 Tools
Max Tool Diameter (adjacent): 4.9"
Max Tool Diameter (without adjacent): 9.8"
Max Tool Length: 23.6"
Max Tool Weight: 66 lbs
Cutting Feed Rate: 157 IPM
Machine Weight: 121,255 lbs

Coolant Thru the Spindle System
Coordinate System Rotation
Steel Way Covers
Rigid Tapping
Scales X
Scales Y
Scales Z
Manual Pulse Generator
Auto Clamping System on Y Axis
Secondary Lube Tank
Load Meter
RPM Meter
Chip Conveyor
All Manuals
Fanuc 32iA CNC Control
