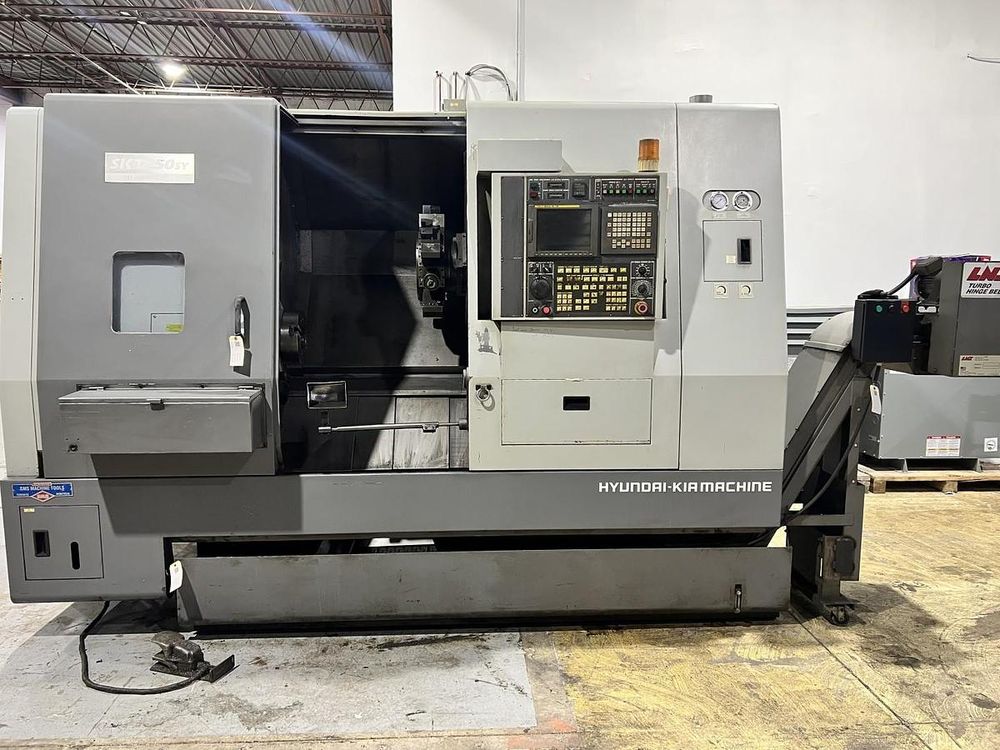

Hyundai-Kia Fanuc 18i-TB CNC controller 3500 rpm SKT250SY 5 Axis

Chip conveyor
Manuals
Misc standard tools
2 radial live tools
2 axial live tools
Parts catcher

Axis travel X: 230 mm
Axis travel Z: 675 mm
Axis travel B: 700 mm
Axis travel Y: 110 (+55) mm
C-axis split capacity: 0.001°

Max swing: 620 mm
Max machining diameter: 410 mm
Max machining length: 700 mm
Cylindrical rod machining capacity: 76 mm
Main spindle speed: 3500 rpm
Main spindle nose: A2-8
Through-hole diameter: 95 mm
Max spindle torque: 24 kgf/m
Drive type: Belt
Sub-spindle chuck size: 152.4 mm
Sub-spindle max rpm: 6000 rpm
Sub-spindle motor power: 5.5 / 7.5 kW
Max rpm live tooling: 4000 rpm
Tool size OD: 25 mm
Tool size ID: 40 mm
Turret clamp force: 4120 kgf
Cutting capability E/M, DR: 20 mm
Tapping capacity: 16 mm
