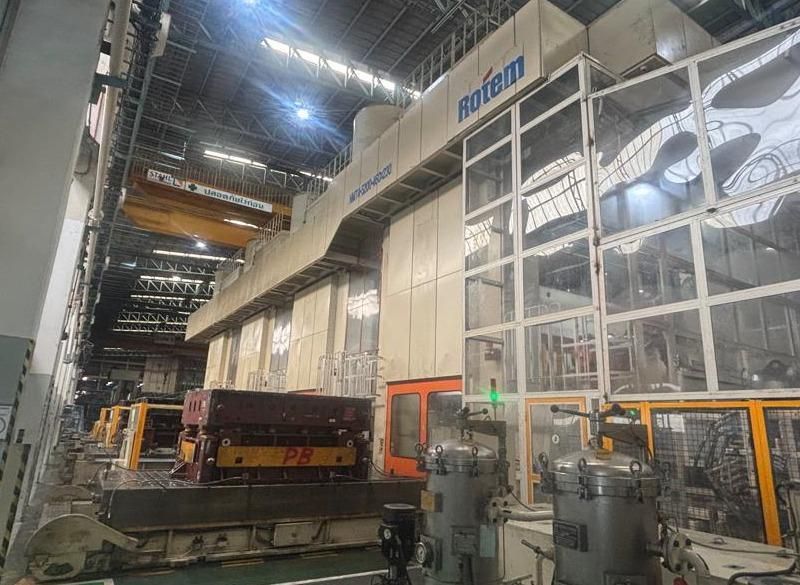

Hyundai ROTEM TANDEM PRESS LINE 2400 ton

Tandem press line
Link motion press
Eccentric presses
Four-point slide design
Air die cushion
Transfer equipment
Destack feeder

Press force: 2400 ton
Press force: 1000 ton
Press force: 1000 ton
Press force: 800 ton
Stroke length: 1100 mm
Die height range: 1150–1400 mm
Slide adjustment: 250 mm
Slide size front-to-back: 2300 mm
Slide size right-to-left: 4600 mm
Bolster size: 2300 × 4600 mm
Bolster thickness: 410 mm
Bolster thickness: 180 mm
Strokes per minute intermittent: 8–13
Strokes per minute continuous: 10–18
Strokes per minute inching: 3–6
Die cushion type: air
Die cushion capacity: 40–400 ton
Die cushion pad size: 1950 × 4210 mm
Die cushion adjustment: 0–305 mm
