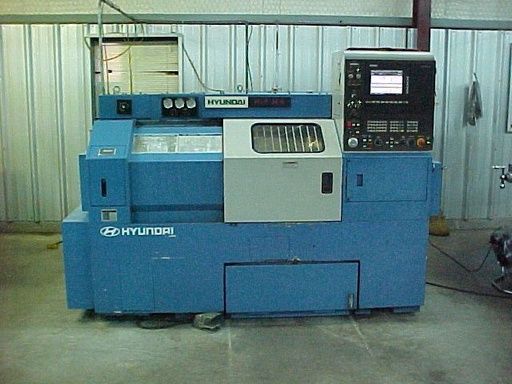

Hyundai SIEMENS 840 1180 IPM 18S 2 Axis

HYUNDAI 18S
2001

Maximum swing over bed................... 17.3"
Maximum cutting diameter................. 11"
Maximum cutting length................... 20"
Maximum length between centers........... 25"
Maximum bar capacity..................... 2.8"
Spindle nose............................. A2-8
Spindle bore............................. 3.1"
X-axis travel............................ 7"
Z-axis travel............................ 20"
Rapid traverse rate...................... 1180 IPM
Diameter of tailstock quill.............. 3.1"
Taper of tailstock quill................. #4 MORSE TAPER
Stroke of tailstock quill................ 5.1"
Stroke of tailstock body................. 18.1"
Spindle speeds........................... 36 - 3600 RPM

EQUIPPED WITH:
TOOL PRESETTER
SIEMENS 840D CNC CONTROL WITH CRT
TURRET
NEW 8" CHUCK
15 HP SPINDLE MOTOR
