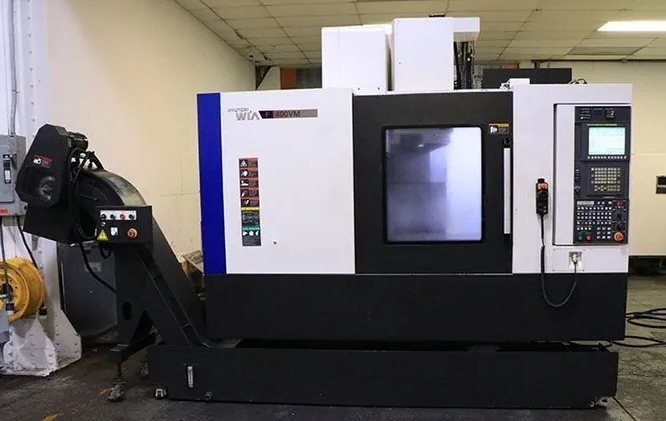

Hyundai WIA F400VM 3 Axis

X-axis travel: 31.5" / 800 mm
Y-axis travel: 18.1" / 460 mm
Z-axis travel: 20.5" / 520 mm
Table size: 39.4" x 18.1"
Distance spindle to table: 5.1" min / 25.6" max
Max table capacity: 1,323 lbs
Spindle speeds: 10,000 RPM
Spindle taper: CAT 40
Rapid traverse rate (X & Y/Z): 1,418 IPM
Automatic tool changer positions: 30
Spindle motor: 20 HP
Approximate machine weight: 11,500 lbs
CNC control: FANUC i
Remote jog handle
Coolant through spindle
Coolant system
Oil chiller
Chip conveyor
