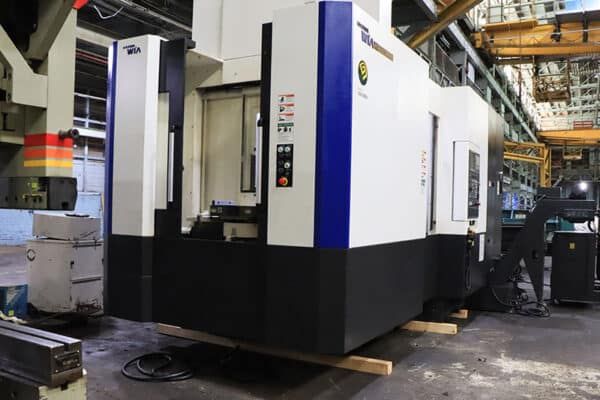

Hyundai WIA HS5000i 4 Axis

X axis travel: 33.5"
Y axis travel: 27.6"
Z axis travel: 29.5"
Rapid traverse X/Y/Z: 1969 IPM
Cutting feed rate: 393 IPM
Indexing angle: 0.001°
Control: Fanuc Series 32i Model B
Expanded memory
High speed HRV3 function
64 tool offsets
AI contour control
Helical interpolation
Thread cutting / synchronous feed
Rigid tapping
Coordinate system rotation
Custom macros
Simultaneous controlled axes expansion
Background editing
Renishaw laser tool setter
Coolant through spindle
High pressure coolant pump 70 bar / 1000 PSI
Pallet size: 19.7" x 19.7"
Number of pallets: 2
Table load capacity: 1102 lbs
Spindle taper: CAT 40 Big Plus
Spindle speed max: 12000 rpm
Spindle motor power: 33.5 / 30 HP
Spindle torque: 123.1 / 70.1 lbf-ft
Spindle type: Built-in
Tool capacity: 80
Max tool diameter: 3" / 5.5"
Max tool length: 17.7"
Max tool weight: 17.6 lbs
Tool change time T-T: 1.1 sec
Tool change time C-C: 3.8 sec
Dimensions: 109" x 192" x 110.8"
Weight: 33069 lbs
Chip conveyor
