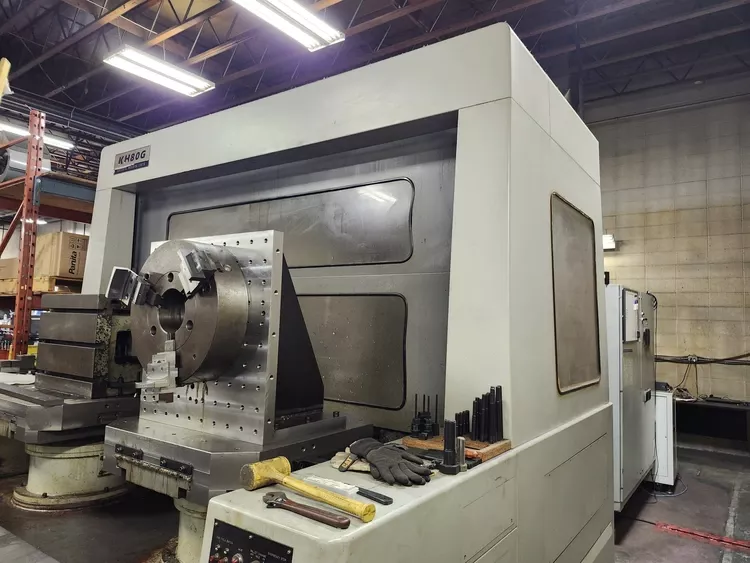

Hyundai WIA KH 80G 4 Axis

X-axis travel49.2 in
Y-axis travel39.4 in
Z-axis travel33.5 in
B-axis travel1°

Pallet size31.5 × 31.5 in
Number of pallets2
Pallet weight capacity4,850 lb
Pallet surface to spindle center1.97" – 41.3"
Pallet center to spindle gage line9.8" – 43.3"
Workpiece dimensions45.3" D × 45.3" H
Spindle speed4,500 RPM
Spindle taper#50 CT
Number of speed ranges3
Main motor35 hp
Cutting feed rate315 in/min
Rapid traverse rate X709 in/min
Rapid traverse rate Y709 in/min
Rapid traverse rate Z709 in/min
Automatic tool changer80
Tool diameter9.6"
Tool length23.6"
Tool weight77 lb
Tool change time3.5 sec
ControlFANUC 18iMB CNC COLOR CONTROL
Coolant thru spindle
Chip conveyor
Remote MPG
Tool length measurement probe
Rigid tapping
99 pairs tool offsets
