Hyundai WIA LV1100RM Maximum Swing 53.3"
Ref :
2728864-3-GO
Condition :
Used
Manufacturer :
Hyundai
Model :
WIA LV1100RM
Short Description :
Maximum Swing 53.3"
Year(s) :
2018
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)

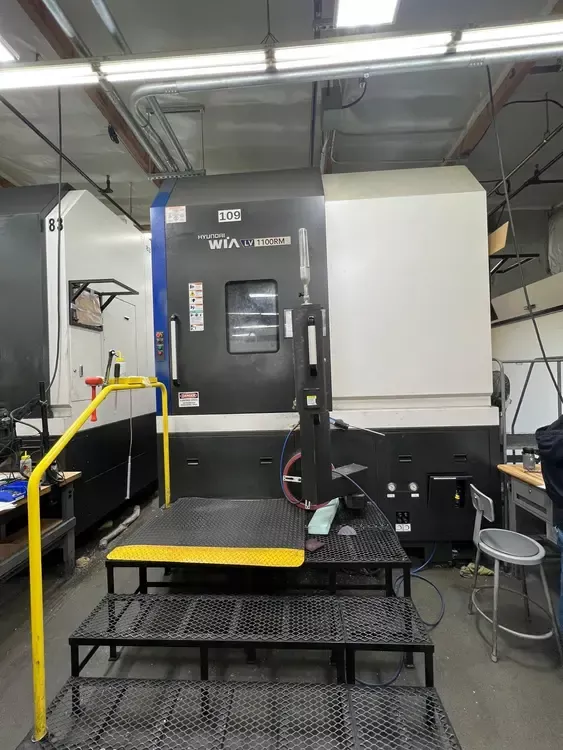

HYUNDAI WIA LV1100RM
2018
Table Diameter 43"
Maximum Turning Diameter 45.7"
Horizontal Railhead Travel (X-Axis) 39.4"
Cross Rail Vertical Travel 24.4"
Chuck Size 43"
Main Table Motor 87.2 HP
Live Spindle Speed 3600 RPM (2 Ranges)
Table Speed 800 RPM
Automatic Tool Changer 12 Position
Rapid Traverse X/Z 945 IPM
Control FANUC 32i-B
C-Axis
Tool Presetter
Part Probe
Chip Conveyor
