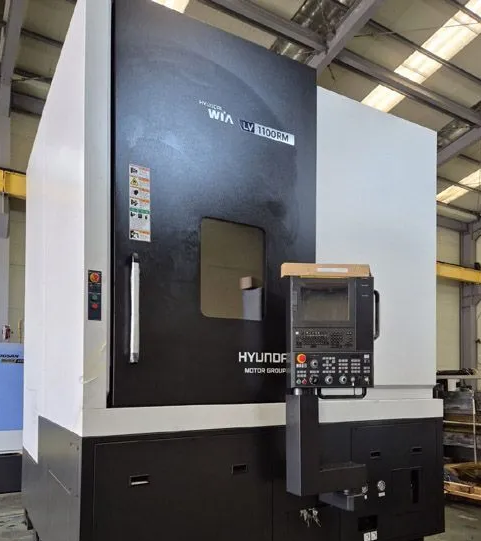

Hyundai WIA LV1100RM Swing Over Bed: 53.3"

Table Diameter: 40"
Swing Over Carriage: 49.2"
Maximum Turning Diameter: 45.7"
Maximum Turning Length: 39.4"
Chuck Size: 40"
Spindle Bore: 4.3"
Spindle Speed: 4.3 RPM
Motor (10min/30min/Cont): 87 / 74 / 60 HP
Torque (10min/30min/Cont): 5,657 / 4,786.8 / 3,916.5 lbf-ft
Spindle Type: Gear Box
Spindle Nose: 15" Flat
C-Axis Indexing: 0.001°
Travel (X/Z): 24.4" / 39.4"
Rapid Traverse Rate (X/Z): 945 / 945 IPM
Slide Type: Box Guide
Turret Tools: 12
Indexing Time: 0.6 sec/step
Live Tool Motor: 15 / 10 HP
Milling Tool Speed: 3,000 RPM
Torque (Max/Cont): 103.3 / 70.4 lbf-ft
Collet Size: 1.3" (ER50)
Tool Holder Type: BMT85

Floor Space: 115" x 170.3" (excluding chip conveyor)
Height: 148.7"
Weight: 48,502 lbs

Control: FANUC 32i-B
Hydraulic Chuck: 40"
Portable Tool Presetter
Chip Conveyor
1 Angular and 1 Straight Milling Holder
