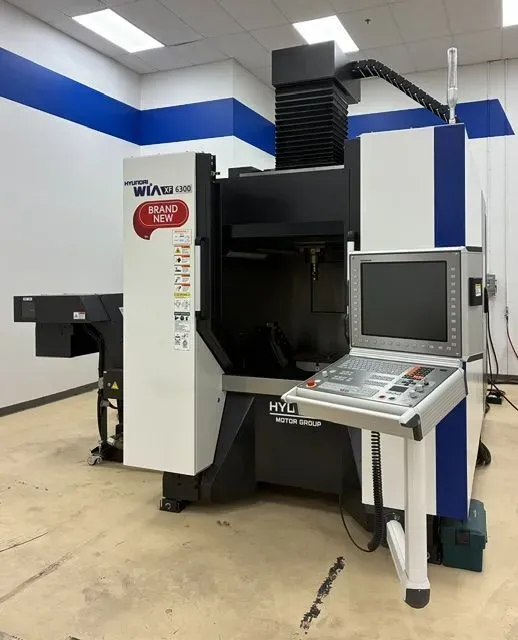

Hyundai WIA XF-6300 5 Axis

X-axis travel: 25.6"
Y-axis travel: 23.6"
Z-axis travel: 19.7"
A-axis travel: -30° to +120°
Rapid traverse X: 1,967 in/min
Rapid traverse Y: 1,967 in/min
Rapid traverse Z: 1,967 in/min
Cutting feed rate: 1,967 in/min
Control: HEIDENHAIN TNC 640 3D CNC Color Control
5-axis simultaneous machining
19" color TFT monitor
21 GB SSD
5000-block look-ahead
Mold package
Ethernet
USB
Extended memory
Renishaw OMP600 part probe
High-precision linear scales on X, Y, and Z axes
Rotary scales on A and C axes
Y-axis double ball screw structure
4-way structure on X-axis
Bed flushing system
1,000 psi through-spindle coolant
Chip conveyor
Spindle speed: 15,000 rpm
Spindle motor: 41.6 hp
Spindle taper: HSK
Spindle nose to table: 8.7"–28.3"
Table size: 24.8" × 24.8"
Table load capacity: 1,323 lb
Maximum workpiece diameter: 31.5"
Maximum workpiece height: 19.7"
Automatic tool changer: 68 tools
Maximum tool diameter: 3.5"
Maximum tool diameter (adjacent pocket free): 4.9"
Maximum tool length: 11.8"
Maximum tool weight: 17.6 lb
Machine dimensions: 146" × 97" × 122"
Machine weight: 24,251 lb
