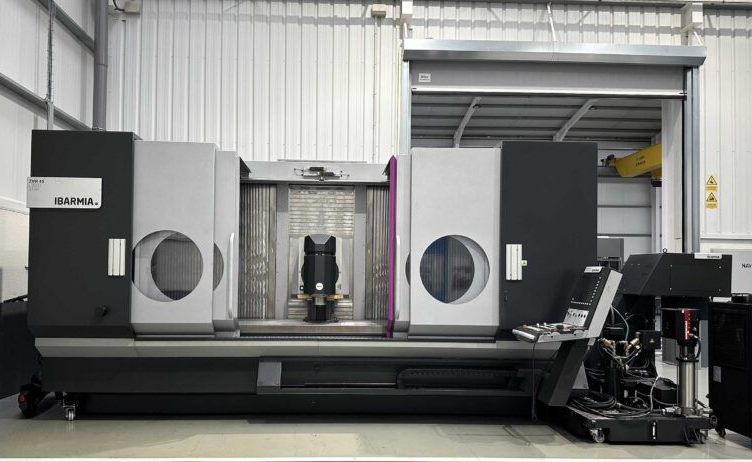

Ibarmia ZVH 45 L3000 STAR 12,000 mm/min

X-Axis Travel: 3,000 mm
Y-Axis Travel: 800 mm
Z-Axis Travel: 800 mm
B-Axis Tilting Head Range: ±105º
Table Dimensions: 3,000 × 1,000 mm
Number of T-Slots: 5
T-Slot Distance: 125 mm
Max Weight on Table: 1,500 daN/m²
CNC Control: Heidenhain iTNC 640
Main Spindle Type: Electro spindle Franz Kessler DS/000-12667
Main Spindle Speed: 30 – 12,000 mm/min
Main Spindle Taper: SK40 DIN69871
Main Spindle Power: 27/39 kW
Main Spindle Torque: 130/187 Nm
External Coolant Pump: 12 Bar
Internal Coolant Pump: 30 Bar
ATC Type: Aitek / RANDOM
ATC Magazine Positions: 40
Max Tool Diameter Without Free Adjacent Places: 90 mm
Max Tool Diameter With Free Adjacent Places: 350 mm
Max Tool Weight: 8 kg
Portable Handwheel: Heidenhain HR-510
Chip Conveyor: Included
Electrospindle Coolant: Kaukan Included
Water Gun: 1 Included
Tool Touch Probe: TT-140
Part Radio Touch Probe: Renishaw RMP60
Total Power Installed: 55 kW
Machine Weight: 18,000 kg
