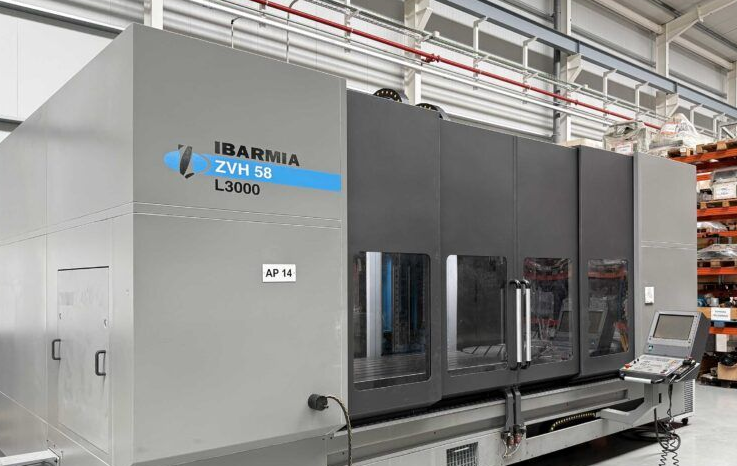

Ibarmia ZVH58 L3000 5 Axis

IBARMIA ZVH58 L3000
2004

CNC Heidenhain iTNC-530
Table surface 3600 x 1050 mm
T-slots 7 x 18 H 18
Distance between T-slots 125 mm
Spindle nose to table 25 – 366 mm
Max table load 4200 kg
X-axis travel 3000 mm
Y-axis travel 1000 mm
Z-axis travel 860 mm
B-axis tilt ±105°
Max feed rate (XYZ) 30 m/min
B-axis rapid rotation 170 rpm
Rotary table diameter 1000 mm
Max swing diameter 1400 mm
Spindle speed 9000 RPM
Spindle taper ISO-50 DIN 69871-AD
Spindle power 28.5 kW
Spindle torque 240 Nm
Tool changer manufacturer AITEK
Tool changer type RANDOM
Tool magazine capacity 40
Max tool weight 20 kg
Max tool diameter (full) 125 mm
Max tool diameter (adjacent empty) 175 mm
Max tool length 365 mm
Axis measuring system Heidenhain optical scales
X travel working in 2 areas 2 x 1150 mm
Portable handwheel HEIDENHAIN HR-410
Longitudinal chip conveyors 2
Cross chip conveyor 1
Internal coolant pressure 30 bar
Coolant gun included
Cooled electrical cabinet included
Lateral windows for long parts included
Total power 65 kW
Machine weight 24,800 kg
Machine dimensions (LxWxH) 8056 x 5496 x 3790 mm
