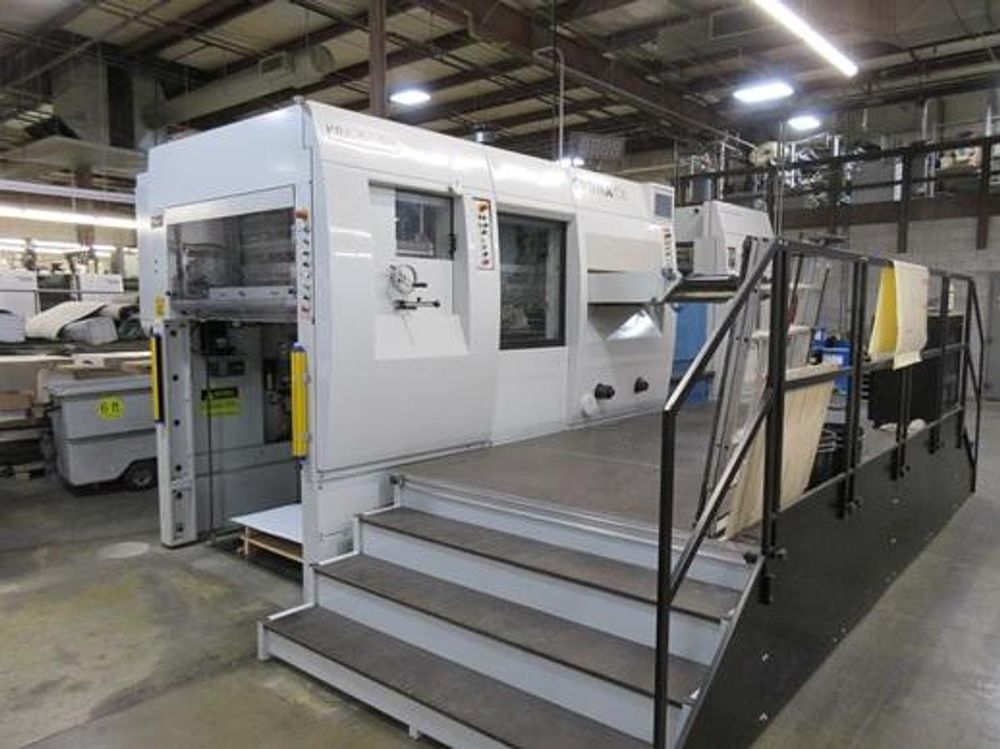

Iberica OPTIMA 106

Maximum sheet size : 1060 x 750 mm (41 ¾” x 29 1/2”)
Minimum sheet size : 400 x 350 mm (15 ¾” x 13 ¾”)
Maximum cutting size : 300 metric tons (330 US tons)
Cutting force : 90 g/m2 up to 3 mm
Convertible stock :
Maximum production rate : 8,500 sheets per hour
Machine hours : Only 3,789 hours
Machine voltage : 3x 400 V / 53 Amp. / 10 kVa

Equipment details :
• Elevated machine (400 mm)
• Non-stop feeder with direct pallet loading
• Motorized front lays
• One (1) O.S. (operator side) pull guide and one OOS (opposite operator side) pull guide
• One (1) cutting chase (quick-locking) and one (1) regular open cutting chase
• One (1) cutting plate
• One (1) lower supporting plate with micrometre adjustment
• Thin plate system
• Double action stripping station
• One (1) set of upper stripping equipment including frame, crossbars, pin holders and pins
• One (1) set of lower stripping equipment including frame, crossbars, pin holders and pins
• One (1) upper stripping frame with quick locking
• One (1) central stripping frame
• Front trim removal device
• Non-stop delivery
• Operator platform
