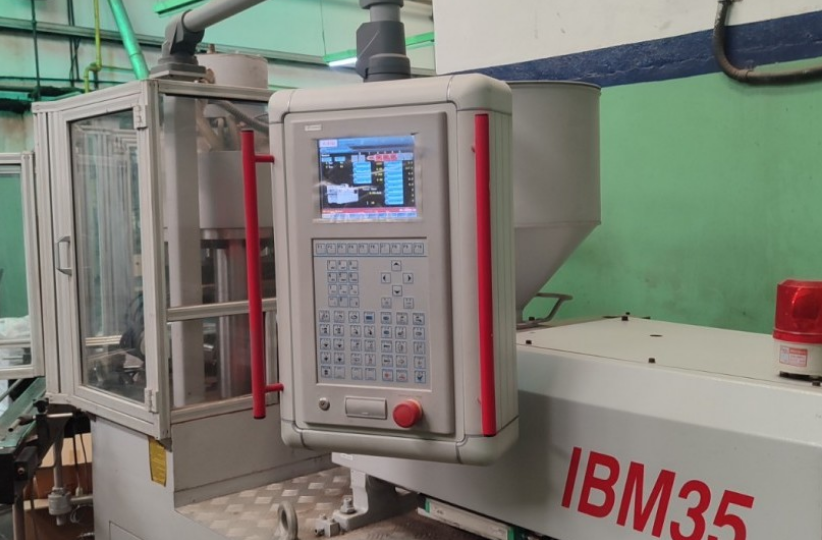

IBM 35 Injection blow molding machine

Injection blow molding machine for HDPE containers.
Includes molds for 30 ml / 125 ml / 150 ml containers.

Construction Features
- Screw stem diameter: 40 mm
- Length/diameter ratio of screw stem (L/D): 20
- Max. theoretical injection capacity: 186 cm3
- Injection volume: 186 g
- Max. injection pressure: 150 MPa
- Max. theoretical injection speed ratio: 60 cm3/sec.
- Max. distance of screw: 165mm
- Twisting force of screw stem: 510 N.m
- Rotary speed of screw stem: 10-180 rpm
- Plasticizing capacity: 13 g/s
- Electric heating power of cylinder: 6.5 kw
- Electric heating control section: 3 qty
- Injection clamping molding: 280 kn
- Opening distance of injection mold: 120 mm
- Blow molding: 30 kn
- Opening distance of blow molding: 120 mm
- Stripping distance: 120mm
- Mold size L ×W: 400x200 mm
- Min. mold thickness: 180 mm

Optional
- Main motor power: 15 kw
- Hydraulic system pressure: 14 MPa
- Lifting height of rotary table: 60 mm
- displacement of compressed air: ＞0.8 M3/min
- Pressure of compressed air system: 1.2MPa
- Cooling consuming volume: 3 M3/h
- Overall size L×W×H: 3100x1100x2200 mm
- Machine weight: 3.5 T
- Product scale: 0.005-0.6 L
- Product height: ≤175mm
-Product diameter: ≤100mm
- Central height of core bar: 140 mm
- Includes 30ml / 125ml / 150ml molds
