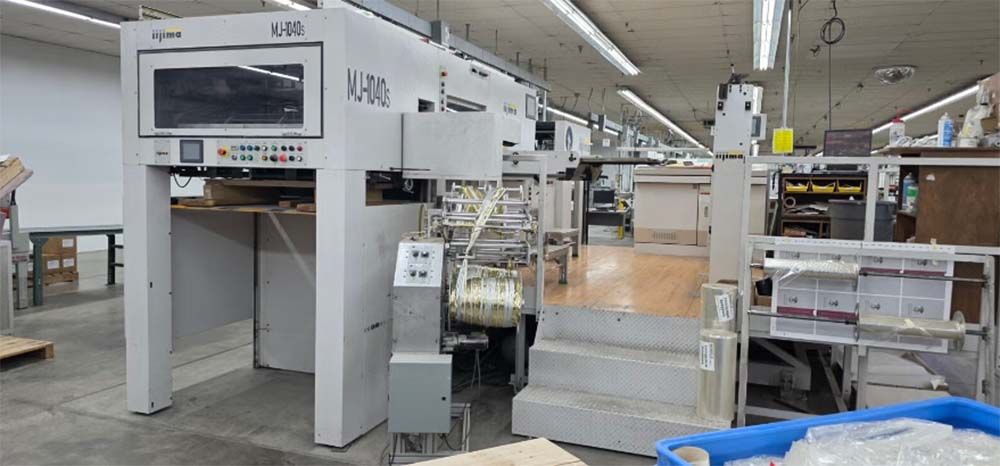

Ijima MJ-1040S

Max Sheet Size 28.8″ x 41″
Min Sheet Size 13″ x 15.7″
Max Cutting Size 28.3″ x 41″
Max Cutting Pressure 330 Tons
Max Speed 8,000 sheets/hr.
Foil Stamping Max Speed 7,600 sheets/hr.
Size of Inside Chase 29.33″ x 42.12″
Gripper Edge Margin (Adjustable) 0.315″-0.5″
Height of Cutting Rules .937″
Stock Range 0.004″-E-Flute Corrugate
Electrical 220 VAC/60Hz/11kw
Compressed Air Requirement 5 cfm at 125 psi

General Machine Features:
Over tonnage protection system
Centerline system for die cutting & stripping
Electronic sheet counter with maximum sheet count control
Easy adjustment of timing for sheet transport to front lays
Gripper open and suitable stop system
Pneumatic chase locking system
Air floatation system for bottom bed removal
Dynamic sheet travel system (sector gear drive)
Operator platform with safety railing and steps
Digital measurement of the cutting pressure (touch screen controlled)

Foil Stamping and Embossing Features:
12 zone, digital controlled, heated upper bolster (EGC model) 122º- 392º F
Heated lower base (optional) Up to 172º F
Touch screen computer & control cabinet
Digital direct drive foil system with bell curve technology
Telescopic foil roll change system
Foil preloading station
Convertible (foil cassette removal system)
Servo driven on/off automatic impression system with ball screw drive
Digital Intelligence System for monitoring the stamping pressure.
Jet to jet air blast system with air storage tank
Air blast control operator side
Two (2)-draw servo foil advance system
High-speed servo foil take-up system
Bi-direction foil drive (with or against the sheet)
Supplies to run four (4) webs of foil
Foil web tracking system
Foil removal system with turn bars, adjustable pins and evacuation brushes
300 mm elevation package
