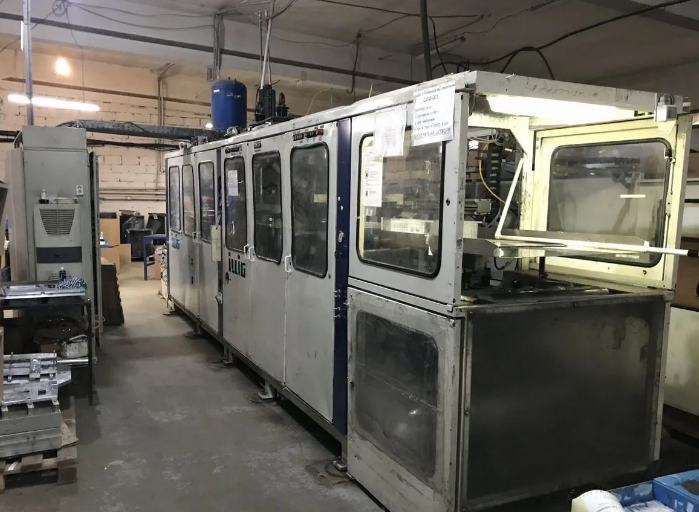

Illig RDK-54
Ref :
2755315-6-GO
Condition :
Used
Manufacturer :
Illig
Model :
RDK-54
Year(s) :
1998
Quantity :
1
Location :
Seller or machines location:
RUSSIA and Central Asia
RUSSIA and Central Asia
Thermoforming 3-station
Forming area: 500x380 mm
Belt width: 320-540 mm
Belt thickness: 0.2-2.0 mm
Drawing pitch: 200-1000 mm
Forming depth, positive/negative: 120/80 mm
Heating oven: top + bottom
Heating of the cutting: yes
Lubrication: automatic
Vacuum pump: 100 m3/hour
Cutting force: 50 t
Dimensions: 7970x3725x2315 mm
Dry cycle (forming + cutting): 35 cycles/min
Actual cycle speed: from 2'30”
Equipment:

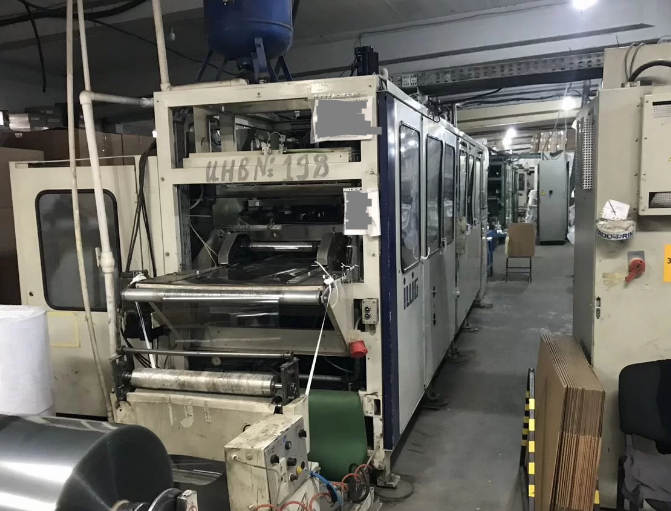

Unwinder
Upper and lower IR tape heating
Servo tape drive

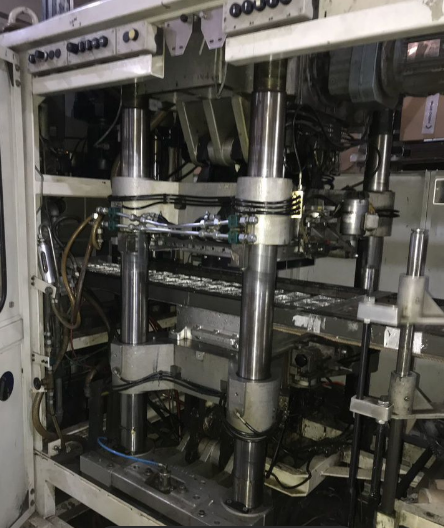

Forming station (servo)

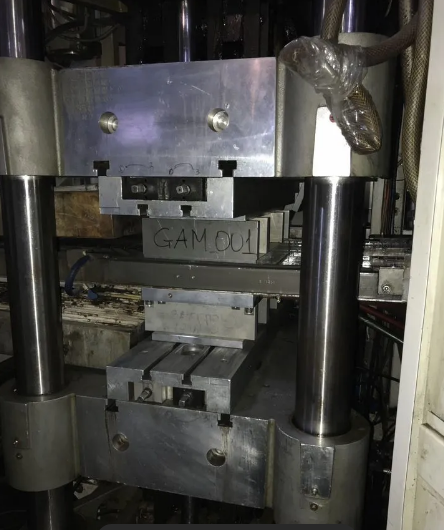

Cutting station (inverters)
Stacker station (upward stacking)
Waste winder (servo)

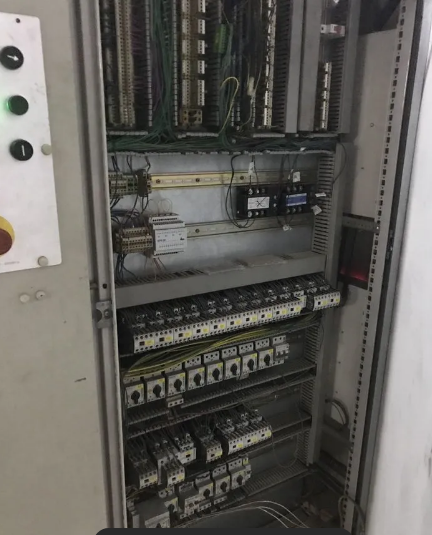

Control cabinet with operator panel
