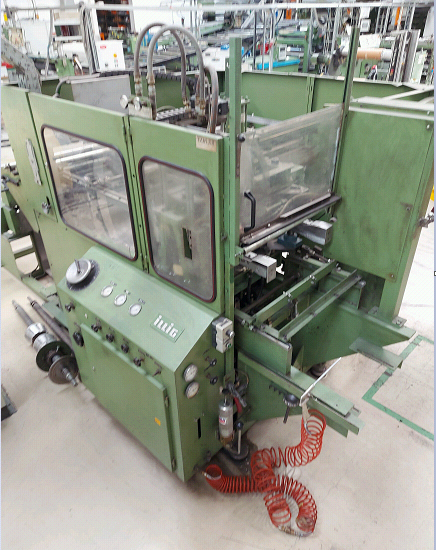

Illig RDM 37/10

Technical data:
Rated power, kW: 11.3
Forming area, mm: 475 x 250max.
Film width, mm: 495min.
Film width, mm: 150max.
Feed length, mm: 280min.
Feed length, mm: 50max.
Drawing depth/negative, mm: 100
Cycle speed/min. max.: 48
consumption air/cycle at 6 bar: 100 Nl (net tensioned air)
Heat energy to be dissipated:
with top heating approx. 10 260 Kj/h
with top and bottom heating approx. : 17 715 KJ/h
Dimensions, mm: 5760 x 2350 x 1980
Weight, kg: approx. 2,500
Preheating: not available
Special equipment: hollow floor device available
Control cabinet: included
Standard colour: green
Operating hours, h: 41,685
