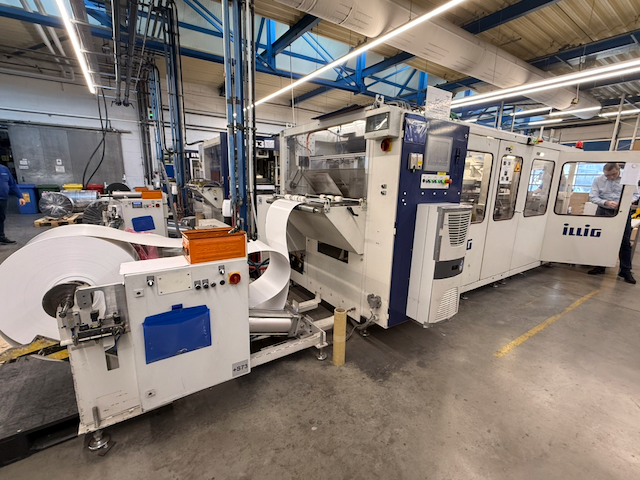

Illig RV 53

Automatic roll-fed separate forming/punching
year of manufacture 2011
Excellent Condition
Not in Production
Hours 37670

In details:
– Un-winding unit with air lift
– Siemens S7 control and Touch screen
– Top and bottom heating with ELSTEIN ceramic Black
– Servo drive for transport chain
– Photocell for sheet sag control
– Servo moveable Top and bottom Forming table
– Moveable Top and Bottom Cutting station
– Re-winding unit for skeletal waste material

Technical details:
Forming area mm max. 500 x 350
Mold width between material transport max. 516 mm
Mold length in feed direction max. 366 mm
Mold height on upper table max. 130 mm
Mold height on lower table max. 50 mm
Material width with max. 550 mm
Index length max. 380 mm
Part height above material level max. 100 mm
Part height below material level max. 30 mm
Cycle speed with process optimization max. 22 1/min.
