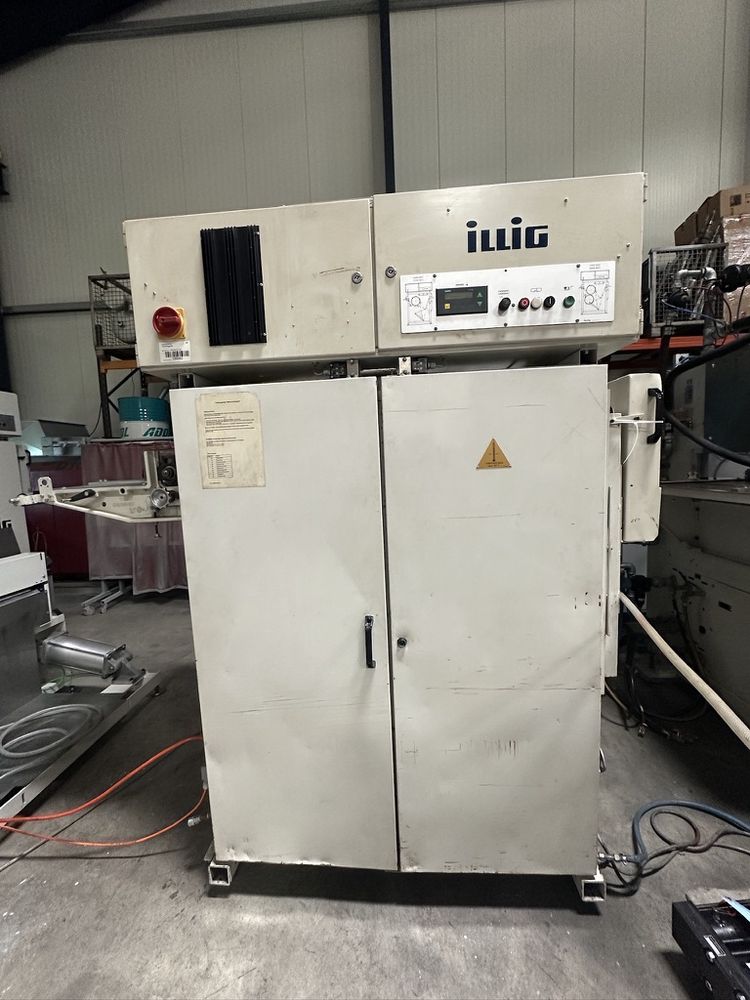

Illig VHW 90/2

material width max. 910 mm
material thickness max. 1.5 mm
connected load heating rolls 25.2 kW
connected load convection heater 7.5 kW
total connected load 33.5 kW
material unwinding speed max. 17 m/min
material unwinding speed min. 2 m/m
temperature heating rolls max. 140°C
temperature convection heater max 140°C
diameter of heating rolls 500mm
number of heating rolls 2 pieces
material loop 540 degrees
material unwinding length/cycle max. 700mm
material discharging height max. 1465mm
material discharging height min. 1050mm
weight 1 200kg
total length 2040mm
total length incl. heat tunnel 2665 mm
total width 1550 mm
height​ 2300​mm
height incl. control cabinet cooling (option)​ 2640​mm Subject to modification.
