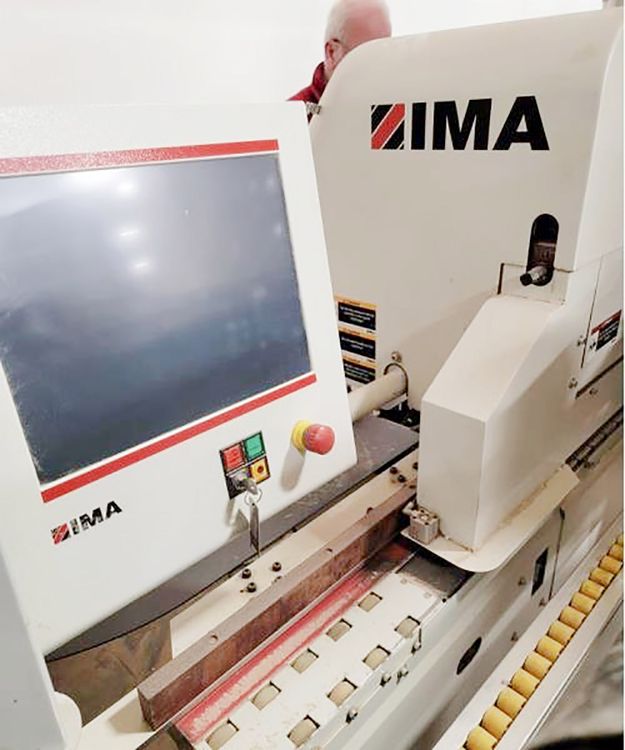

Ima Advantage 500 L

Edgebander
Elect./Voltage: 480 V, 60 Cy, 3 Ph.
Includes Pre-Milling & Corner Rounding

Basic Specifications:
Edgebanding capacity, Coiled material 0.3 - 3 mm; (0.012 - 0.118"), strips 3.0 - 12.0 mm (0.118 - 0.472) panel thickness min/max 8 - 60 mm (0.315 - 2.362").

Equipped With:
Pre-Milling Unit 08.379, with kW 4 x 2 (HP 5.3 x 2) 9,000 RPM vertical joining spindles, with SIKO digital readouts, particle & debris air jet blower.
Glue System "EVA" (Hot Melt) with "quick-look" system and automatic granulate glue feeding from granulate glue supply drum.
Pressure Roll Section with (1) large dia. driven and (5) idle rollers.

Workstations:
End Trimming Unit 08.415: Dual motor kW 0.66 x 2 (HP 0.88 x 2) suspended from the hold-down beam, automatic chamfer adjustment 0° - 8°.
Rough Trimming Unit 08.055: Top & bottom flush trimming, W 1.000 x 2 (HP 1.34 x 2) - 12,000 RPM ea. motor, against the feed (up-milling),
vertical & horizontal tracing wheels, digital readouts for adjustments.
Contour Unit CTU-L: Multi-use, top & bottom linear and vertical corner trimming, total motors (4), 2 x 180 W and 2 x 400 W, 12.000 RPM.
Profile Scraper Unit 08.519: Profile scrapers for up to 3 mm thick PVC banding, vertical & horizontal tracing shoes.
Glue Scraping Unit 08.521: Flat, top & bottom self-tracing glue scraper.
Buffing Unit 08.617-2: Top & bottom kW 0.18 x 4 (HP 0.25 x 4) - 1,400 RPM.
Edge Smoothing Unit: Top & bottom for 1,2 and 3 mm edge

Complete With:
Control System ICOS OPEN TS, large color LCD display; displays stored data, on/off work station sequence,
troubleshooting diagnostic; data input by touch screen, alphanumeric keyboard and mouse.
Microprocessor adjusts according to stored programs or input; pressure section position & pressure control,
vertical positioning of all hold-down beam mounted workstations.
Heavy Duty "sliding" feed chain with 70 mm wide x 60 mm long rubber pad inserts,
central lubrication of transport chain, variable feed speed 4 - 20 MPM (13 - 65 FPM);
Motorized central height adjustment of top pressure beam with double V-belt hold-down.
Sound enclosure, all stations, all trimming & milling motors DC electrical motor brakes for immediate stopping.
Spraying Units, up front at in-feed for anti stick solvent and polishing solvent prior to Buffing Station.
